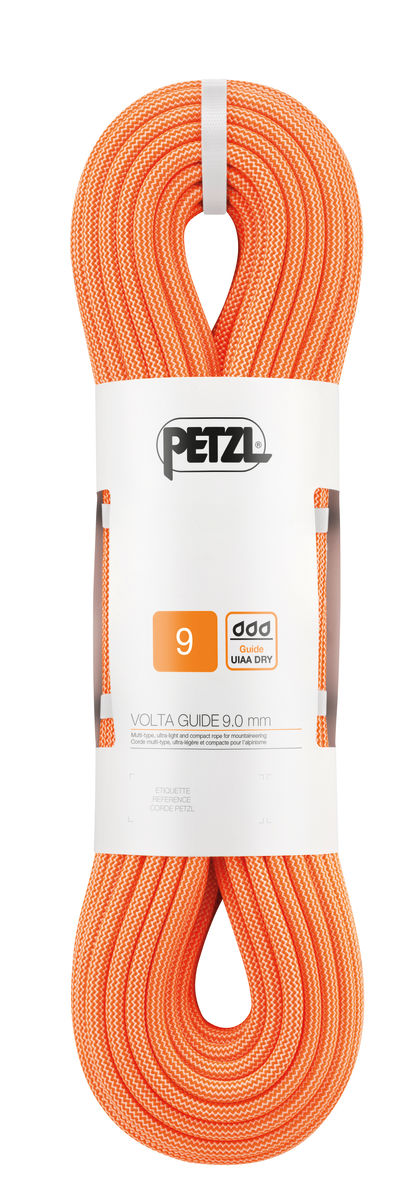

VOLTA® GUIDE 9 mm

Ultra-lightweight multipurpose 9 mm rope with UIAA Guide Dry treatment, for ultimate climbing and mountaineering performance

The VOLTA GUIDE 9 mm rope is extremely lightweight and compact for ultimate rock climbing performance, and offers flexibility and comprehensive water repellent treatment for mountaineering. The UIAA Guide Dry treatment gives it excellent water resistance and makes it well-suited to everyday use in extreme conditions. Offers a good grip and handles well, making the rope easier to manipulate. It is available in several lengths, depending on user needs, from 30 meters for classic mountaineering to 100 meters for multi-pitch climbing.

Add to Quote

Description

  • Compact and ultra-lightweight for ultimate climbing performance:
    – Ultra-lightweight; only 54 g/m
    – Compact, with a thin 9 mm diameter
    – ClimbReady Coil: special coil makes the rope ready to use, helps avoid initial uncoiling mistakes, and increases longevity
  • Excellent water resistance makes it perfect for technical mountaineering and ice climbing:
    – UIAA Guide Dry treatment: water repellent treatment allows users to keep their rope dry, day after day, in a variety of conditions; it meets the requirements of the UIAA standard water repellent test: water absorption of less than 2 %
    – UIAA Guide Dry treatment extends the life of the rope

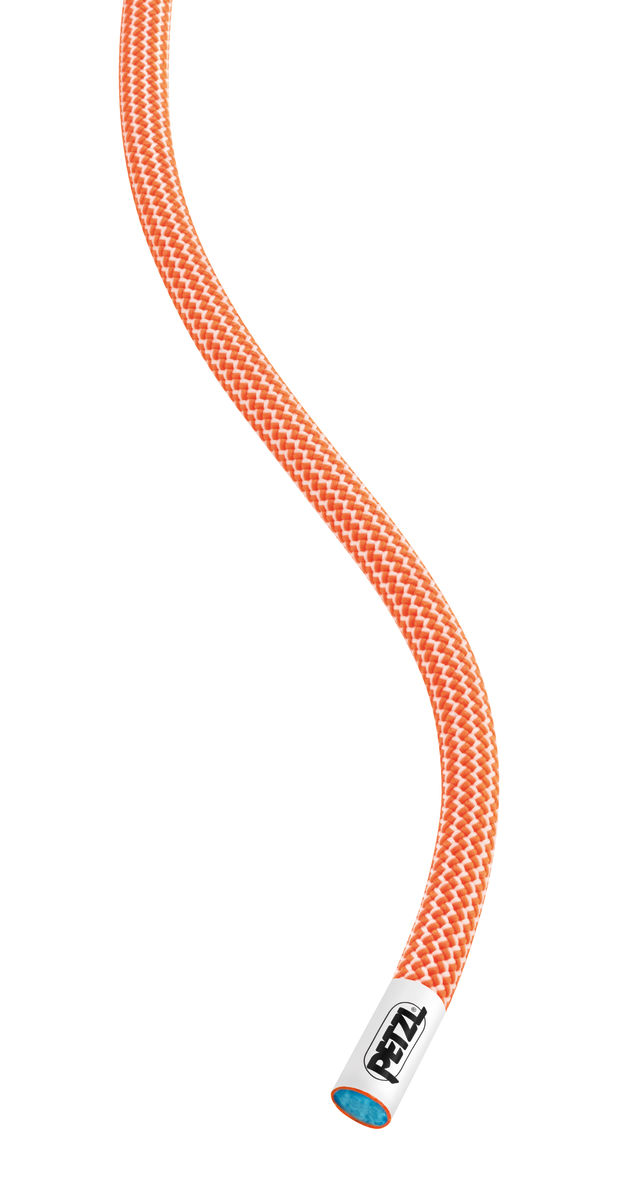

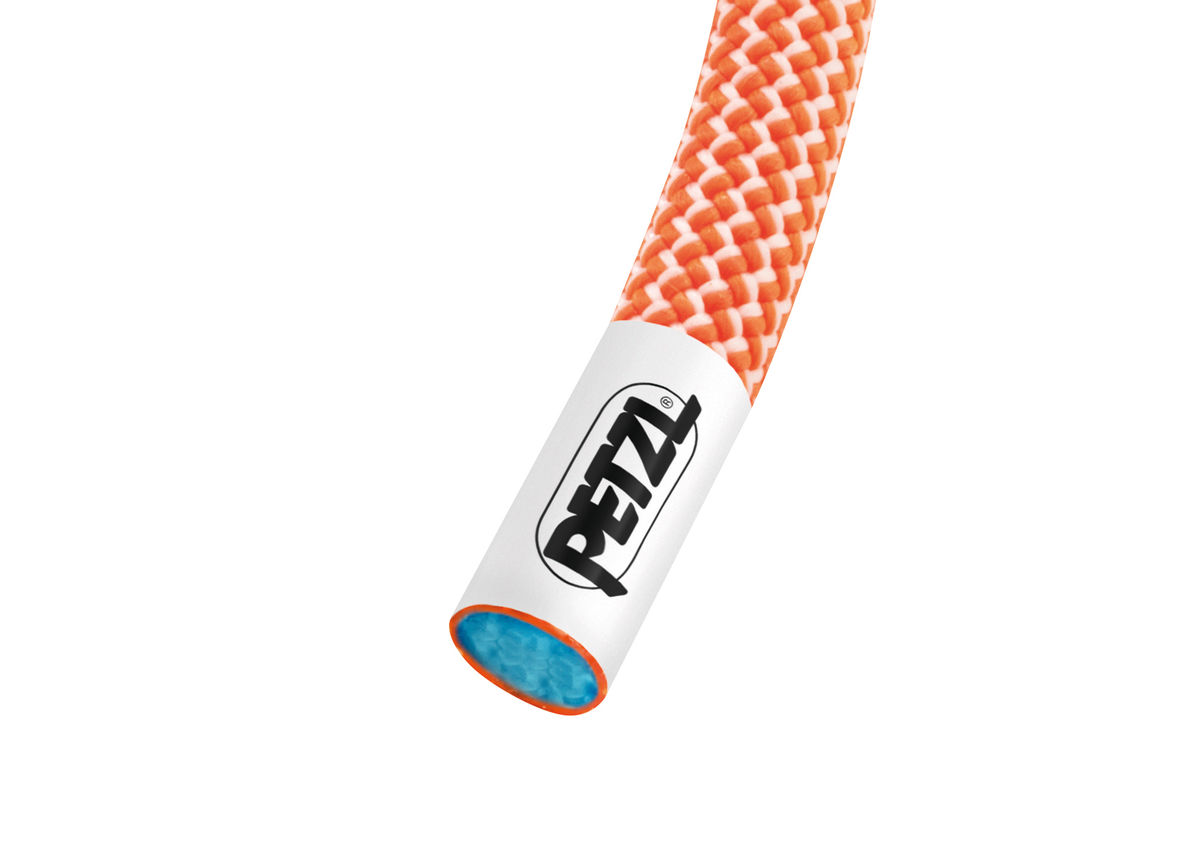

    – UltraSonic Finish: the core and sheath are bonded together at the rope ends by an ultrasonic process, which provides greater durability and helps avoid frayed ends
  • Convenient:
    – Flexibility makes it easier to uncoil the rope, manage loops, and give slack with belay devices
    – 40-carrier grip for better control
    – EverFlex treatment: specific thermal treatment stabilizes core strands and improves consistency, providing excellent grip and consistent handling over time

Specifications

  • Diameter: 9 mm
  • Certification(s): CE EN 892, UKCA, UIAA
  • Rope type: Multi-type: Single, half, and twin
  • Weight per meter: 54 g
  • Percentage of sheath: 39 %
  • Number of factor 1,77 falls: 5 (single), > 20 (half), > 25 (twin)
  • Static elongation: 7.6 % (single), 7.6 % (half), 4.4 % (twin)
  • Dynamic elongation: 34 % (single), 30 % (half), 27 % (twin)
  • Impact force: 8.5 kN (single), 6.6 kN (half), 10.4 kN (twin)
  • Construction: 40 carrier
  • Material(s): Nylon

References

ReferencesR36AO 030R36AO 040R36AO 050R36AO 060R36AO 080R36AO 100
Color(s)OrangeOrangeOrangeOrangeOrangeOrange
Length30 m40 m50 m60 m80 m100 m
Guarantee3 years3 years3 years3 years3 years3 years
Inner Pack Count111111
