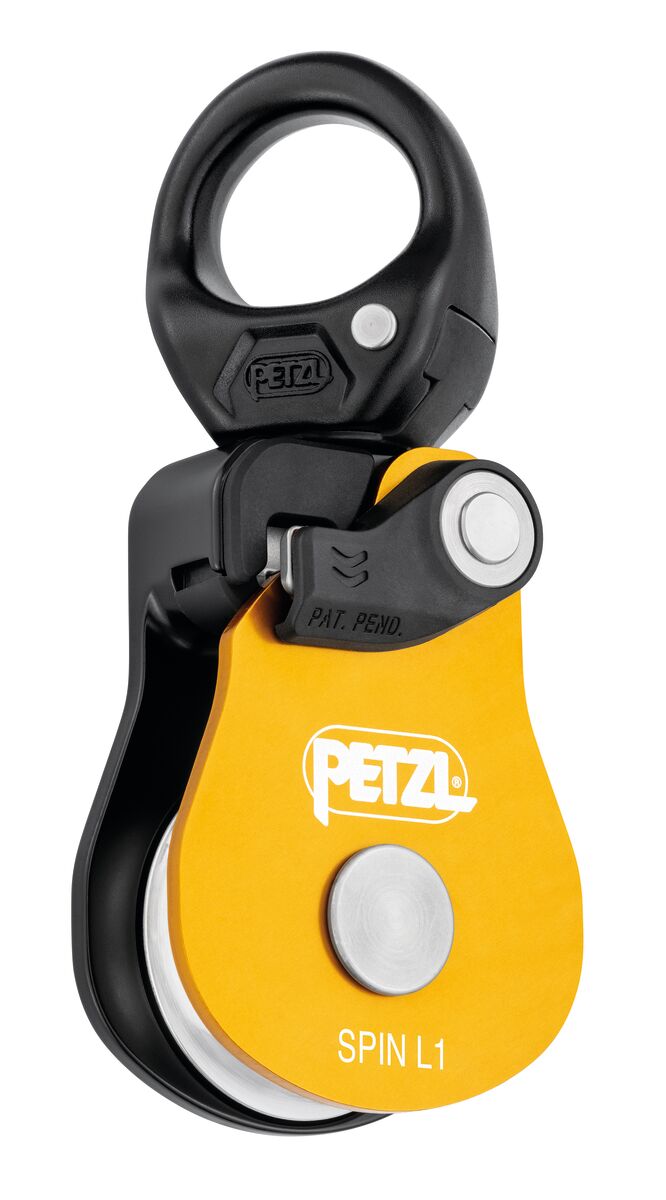

SPIN L1

Very high efficiency single pulley with swivel

Openable even when attached to the anchor, the SPIN L1 pulley is designed for maximum simplicity in setting up hauling or load deviation systems, and tyroleans. The large diameter sheave mounted on sealed ball bearings gives it excellent efficiency. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of carabiners, ropes or slings.

Add to Quote

Description

  • Designed for maximum simplicity in setting up hauling or load deviation systems and tyroleans for work at height, rescue and tree care:
    – triple-action opening of the moving side plate is quick and easy, even with gloves

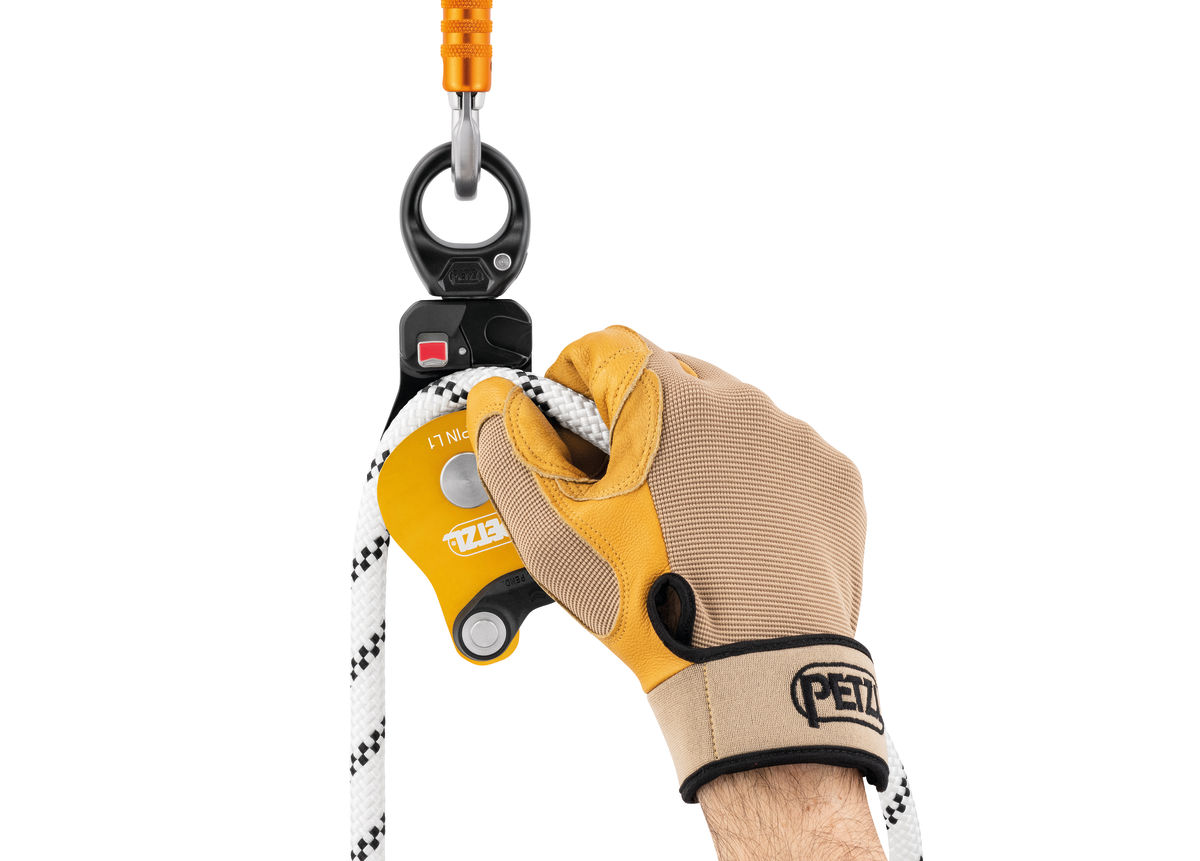

    – the rope can be installed with the device connected to the anchor.
    – red mark provides a visual warning when the moving side plate is unlocked
    – special side plate design protects the rope path
  • Optimal efficiency and easy handling:
    – large diameter sheave mounted on sealed ball bearings for excellent efficiency
    – swivel allows pulley to be oriented under load

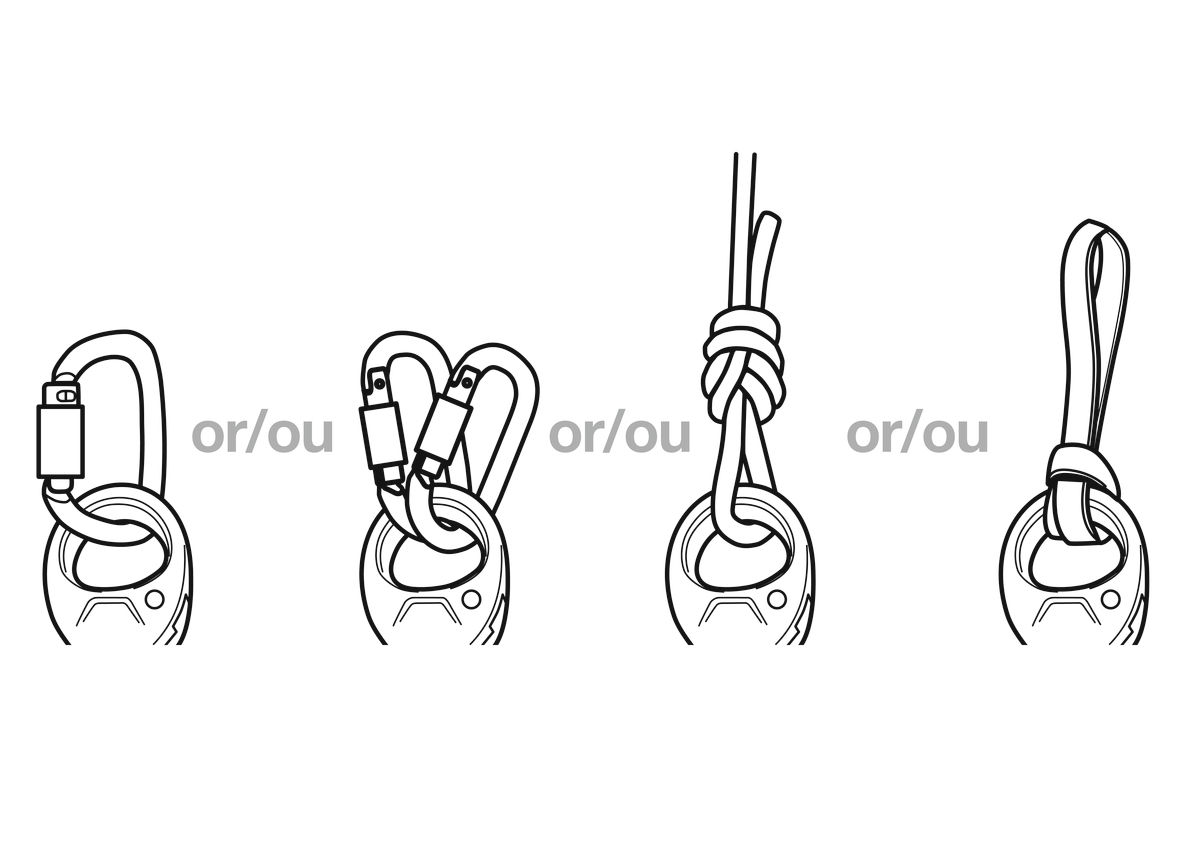

    – swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers.

Specifications

  • Weight: 290 g
  • Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, UKCA
  • Material(s): aluminum, stainless steel, nylon
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 38 mm
  • Maximum working load: 4 x 2 = 8 kN
  • Breaking strength: 36 kN
  • Efficiency: 95 %

References

ReferencesP001BA00P001BA01

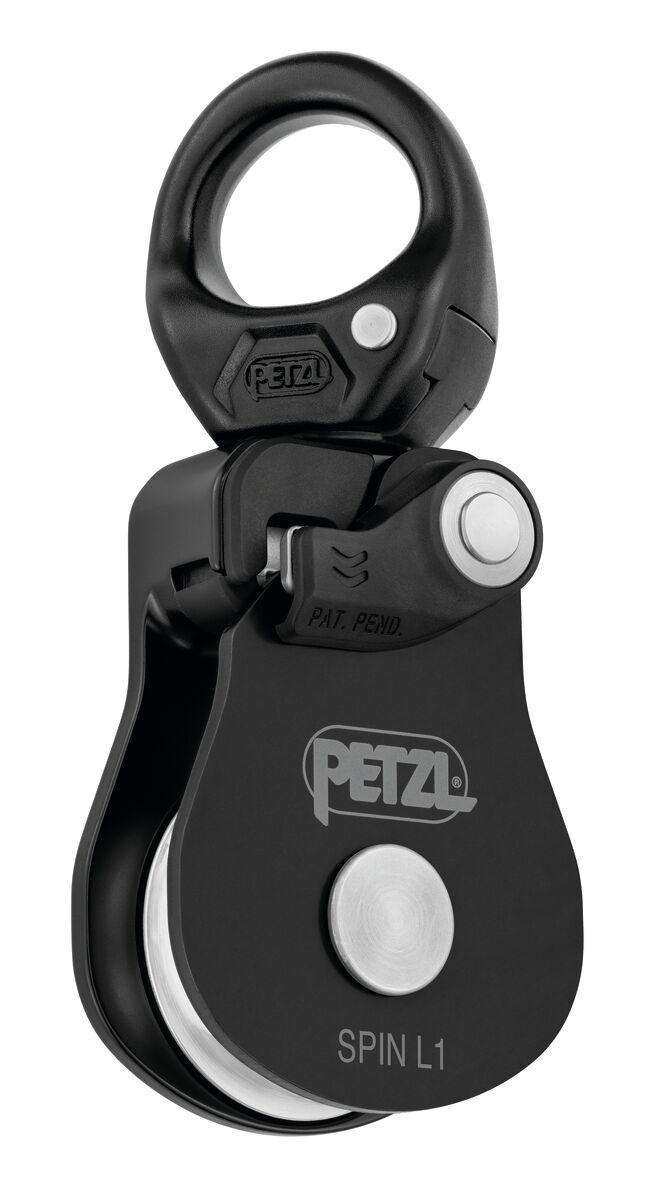

Color(s)YellowBlack
Guarantee3 years3 years
Inner Pack Count11
