Description
- Designed to easily pick-off and lower a victim:

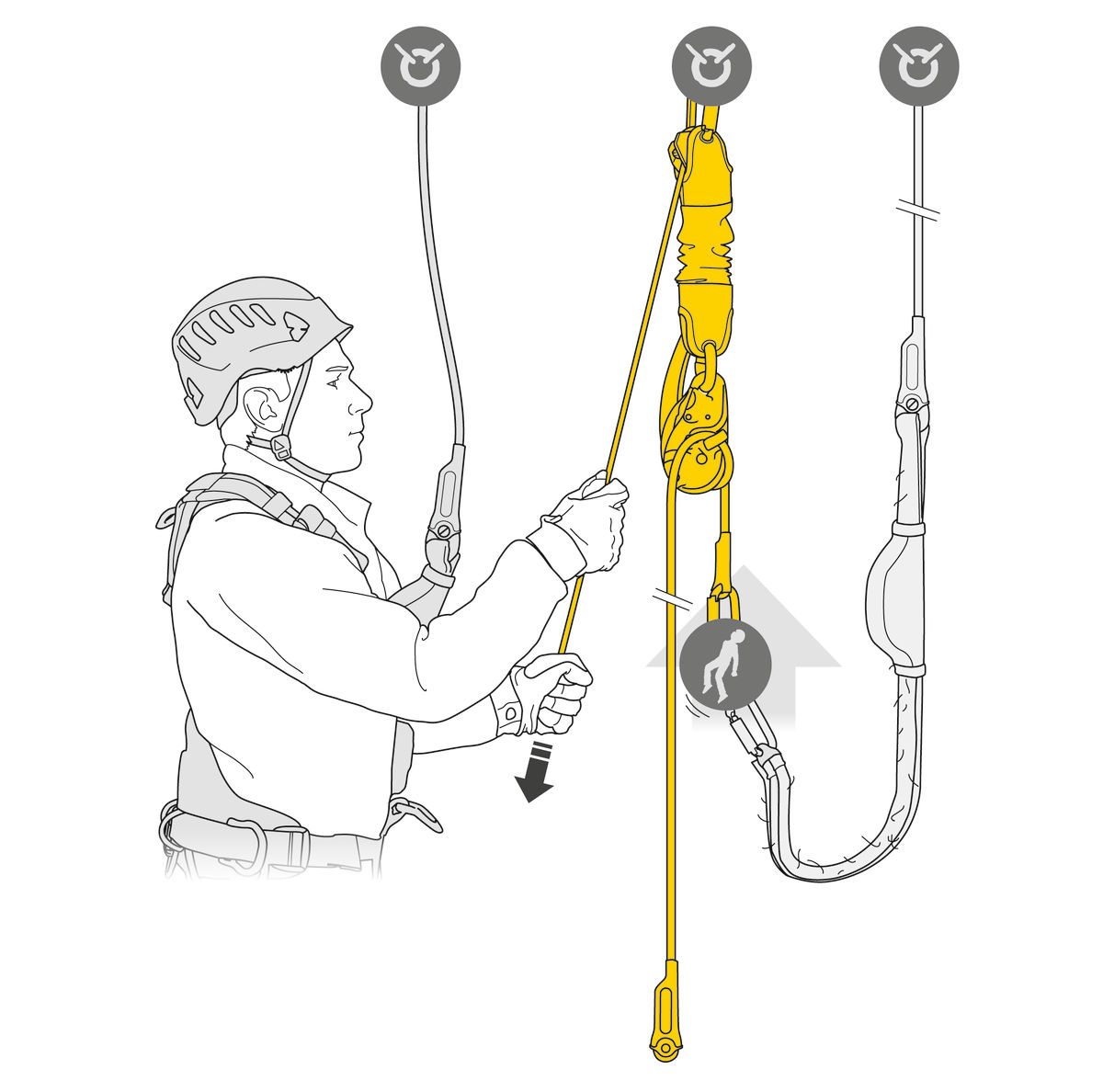

– Pick-off with the JAG SYSTEM haul kit, which has a 4:1 mechanical advantage and excellent sheave efficiency, allowing user effort to be divided by 4 when raising a victim in order to release them

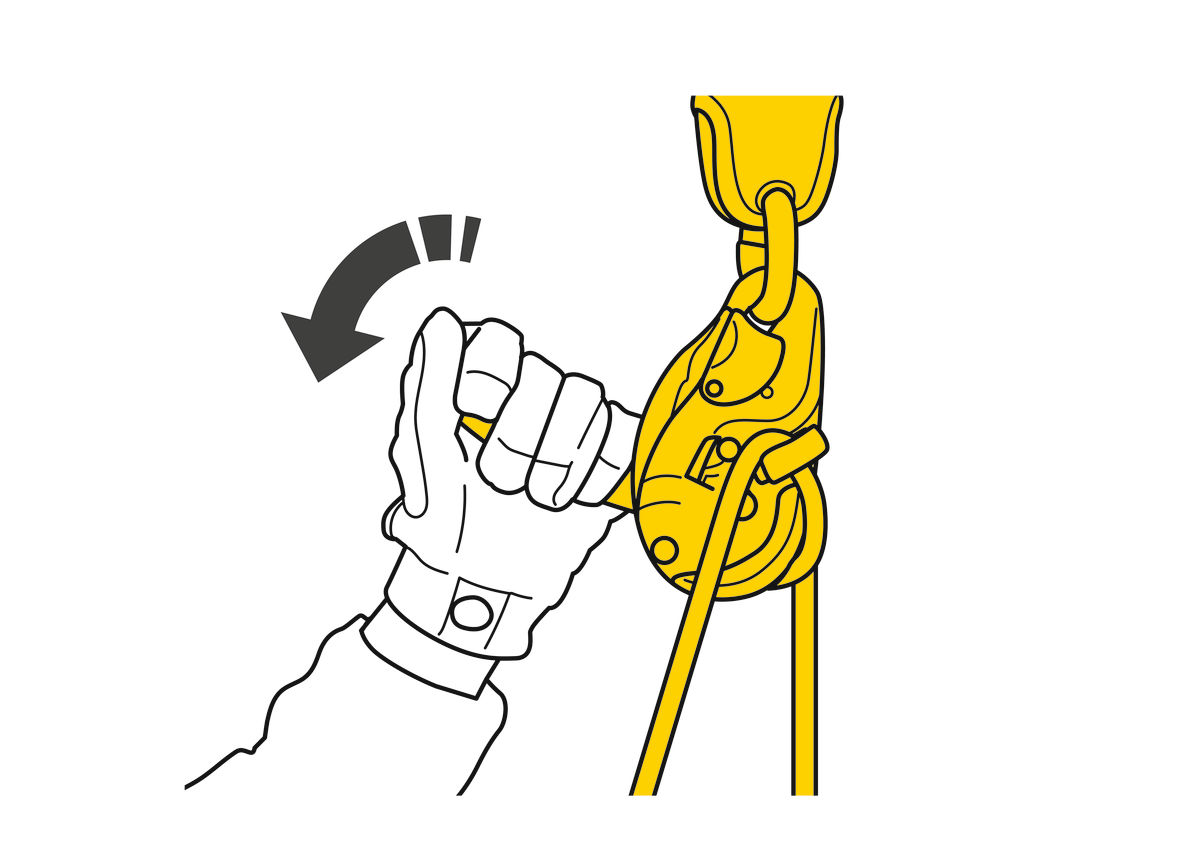

– Evacuation with the I’D EVAC descender, with a handle that is specially designed to easily lower a victim, and an anti-panic function that activates if the user pulls too hard on the handle, which brakes and stops the descent automatically - Always ready to use for quick response:
– JAG SYSTEM equipped with flexible cover that reduces risk of tangling
– Rope is pre-installed in the closed brake, which is integrated in the descender to better control the descent and to provide a constant redirect
– BUCKET bag for transporting the kit
– Kit comes loaded and ready to use - Available in three rope length versions: 30, 60, and 120 meters
- Rescue kit contents:
– JAG SYSTEM haul kit
– RING OPEN gated ring
– I’D EVAC descender
– AXIS 11 mm rope with two sewn terminations
– CONNEXION FIXE 150 cm anchor strap
– BUCKET 15-liter bag for the 30-meter version, 30-liter bag for the 60-meter version, and 45-liter bag for the 120-meter version
Specifications
- Working load limit: 250 kg
- Material(s): Aluminum, steel, nylon, polyurethane, polyester
References
| References | K090AA00 | K090AA01 | K090AA02 |
|---|---|---|---|
| Length | 30 m | 60 m | 120 m |
| Weight | 4460 g | 6760 g | 11460 g |
| Guarantee | 3 years | 3 years | 3 years |
| Inner Pack Count | 1 | 1 | 1 |
