COEUR PULSE 12 mm

Additional information

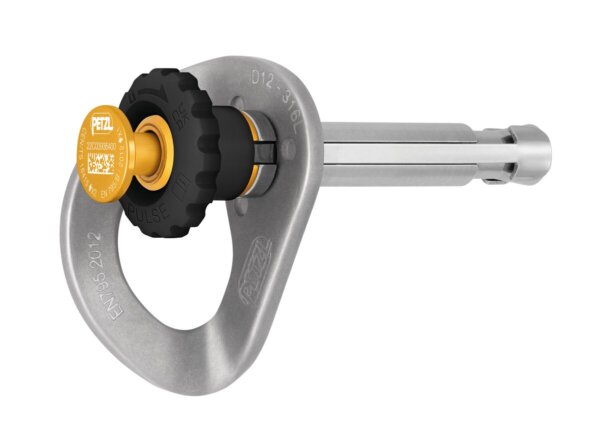

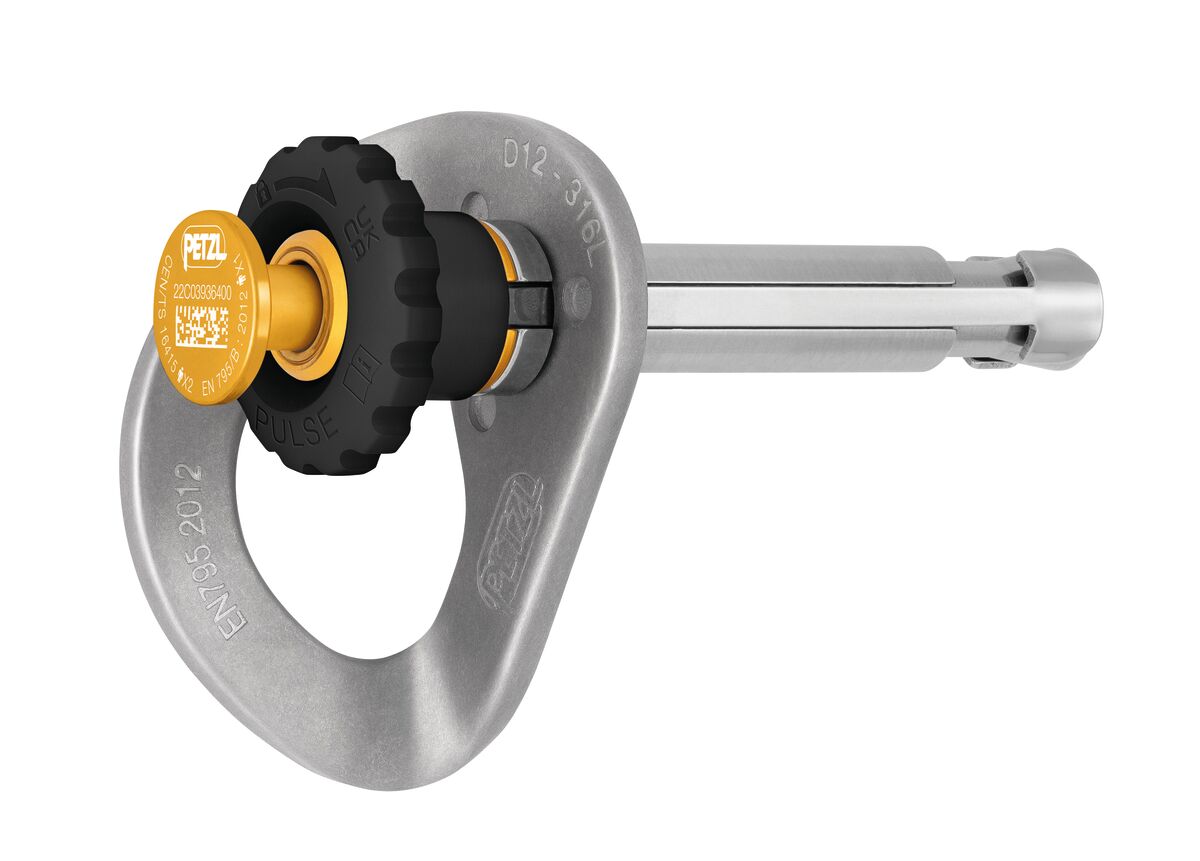

COEUR PULSE 12 mm

High Corrosion Resistance stainless steel anchor for corrosive environments (pack of 20)

The COEUR BOLT HCR is a High Corrosion Resistance stainless steel anchor made up of a COEUR HCR hanger, a bolt, and a nut. It is designed for use in corrosive environments.

Add to Quote

Description

  • Easy to use:

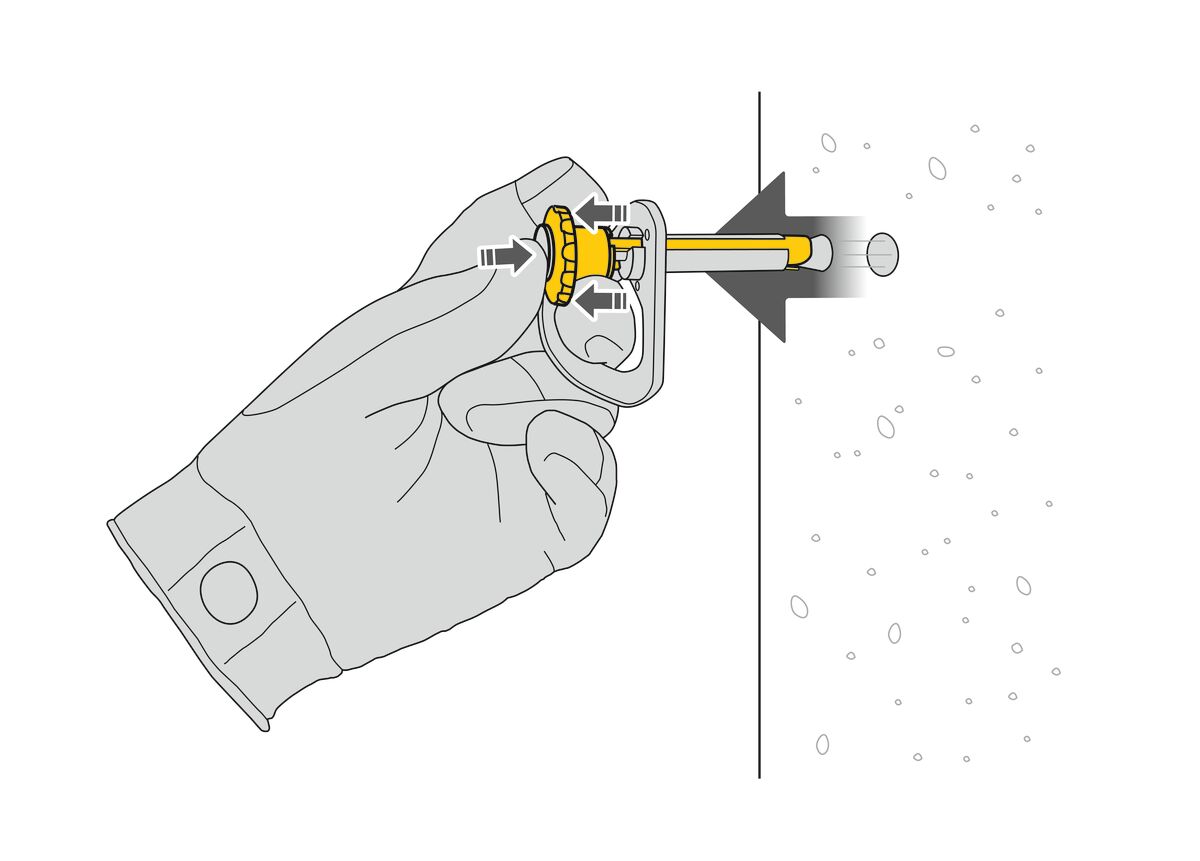

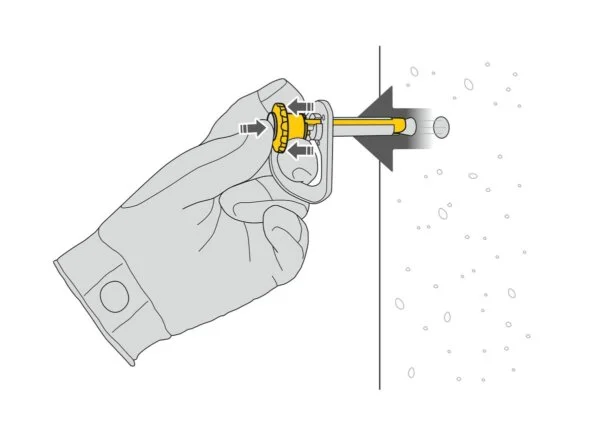

    – Quick and simple to install and remove without tools, so it can be reused

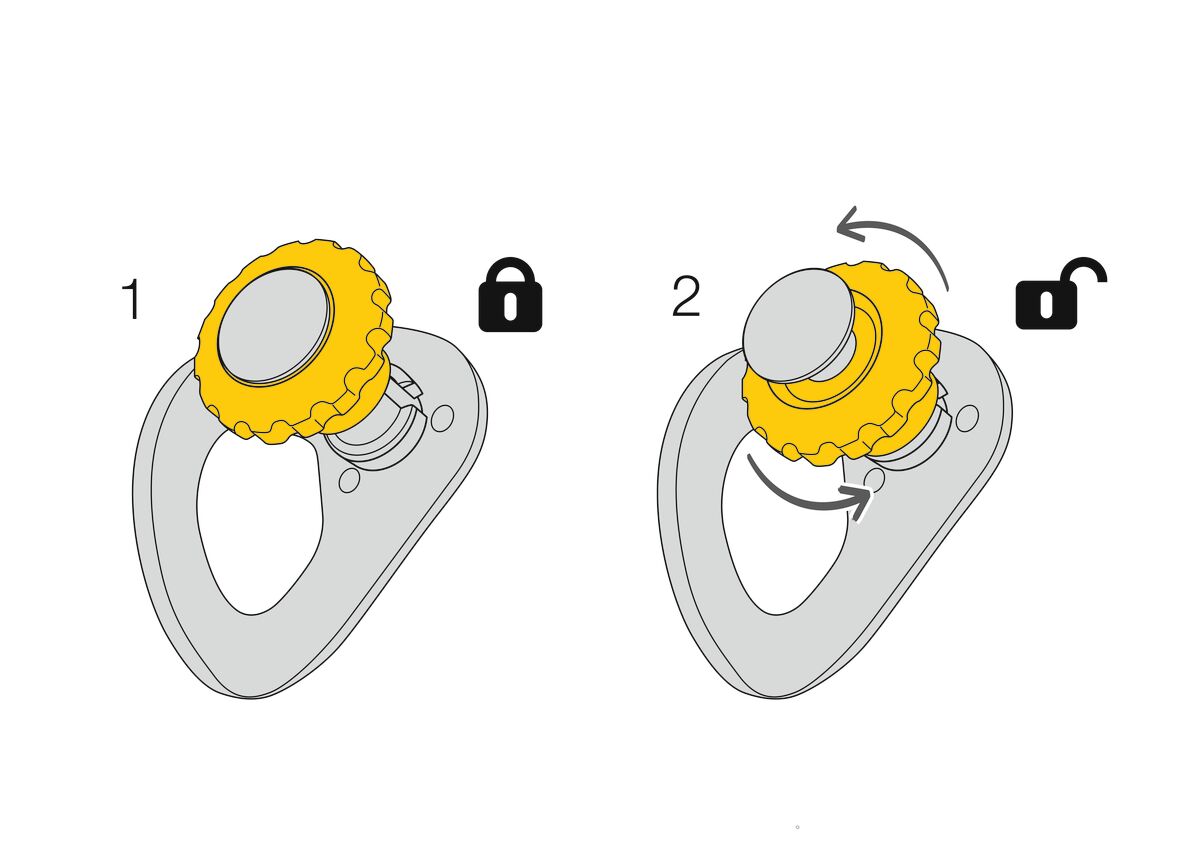

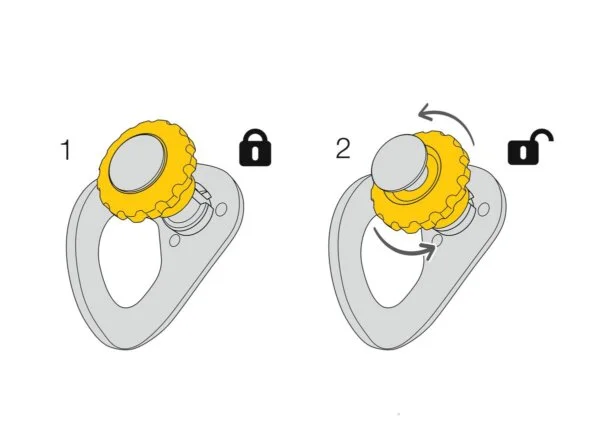

    – Locking function limits the risk of accidental removal
    – The locking knob is easy to handle, even with gloves
  • Easy to clip:

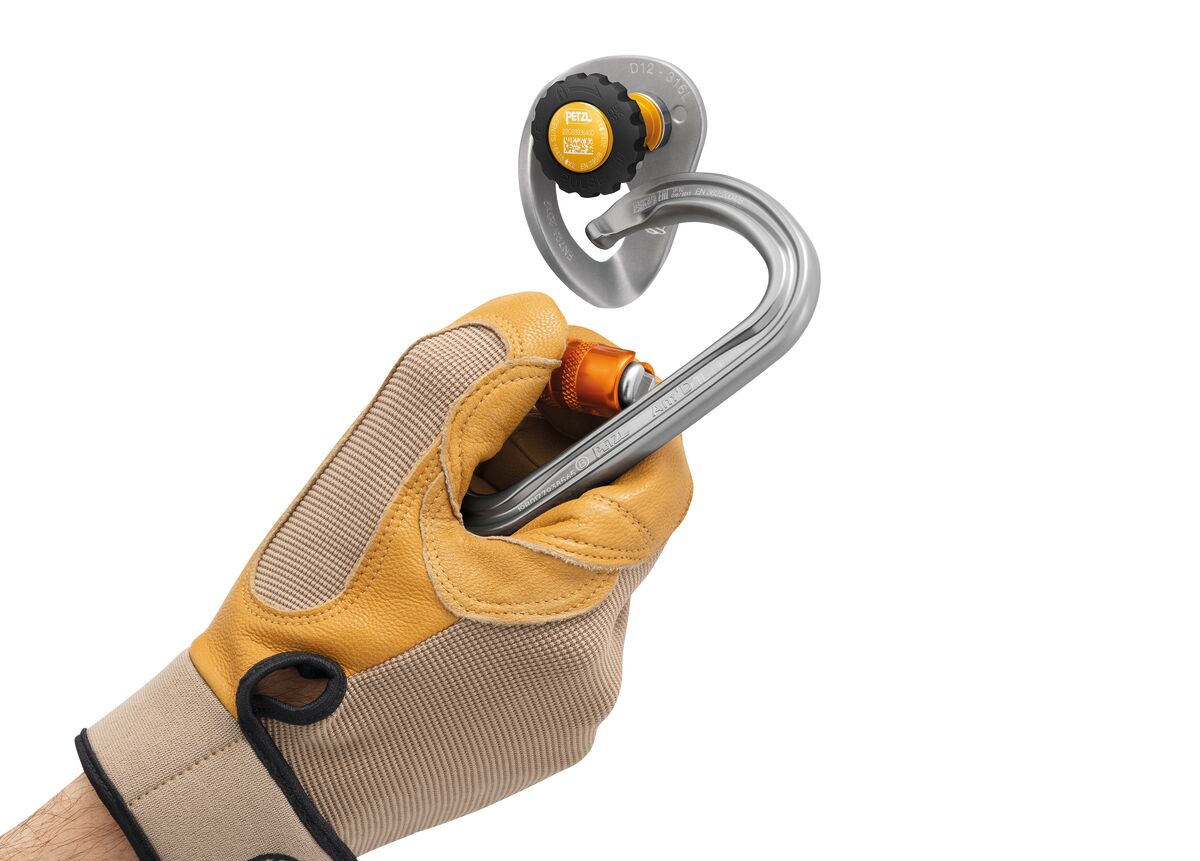

    – Wide, ergonomic hanger opening makes it easier to clip a carabiner
    – Hanger opening is wide enough to accommodate two carabiners at the same time
  • Thickness and rounded edges of the COEUR hanger help reduce wear on carabiners

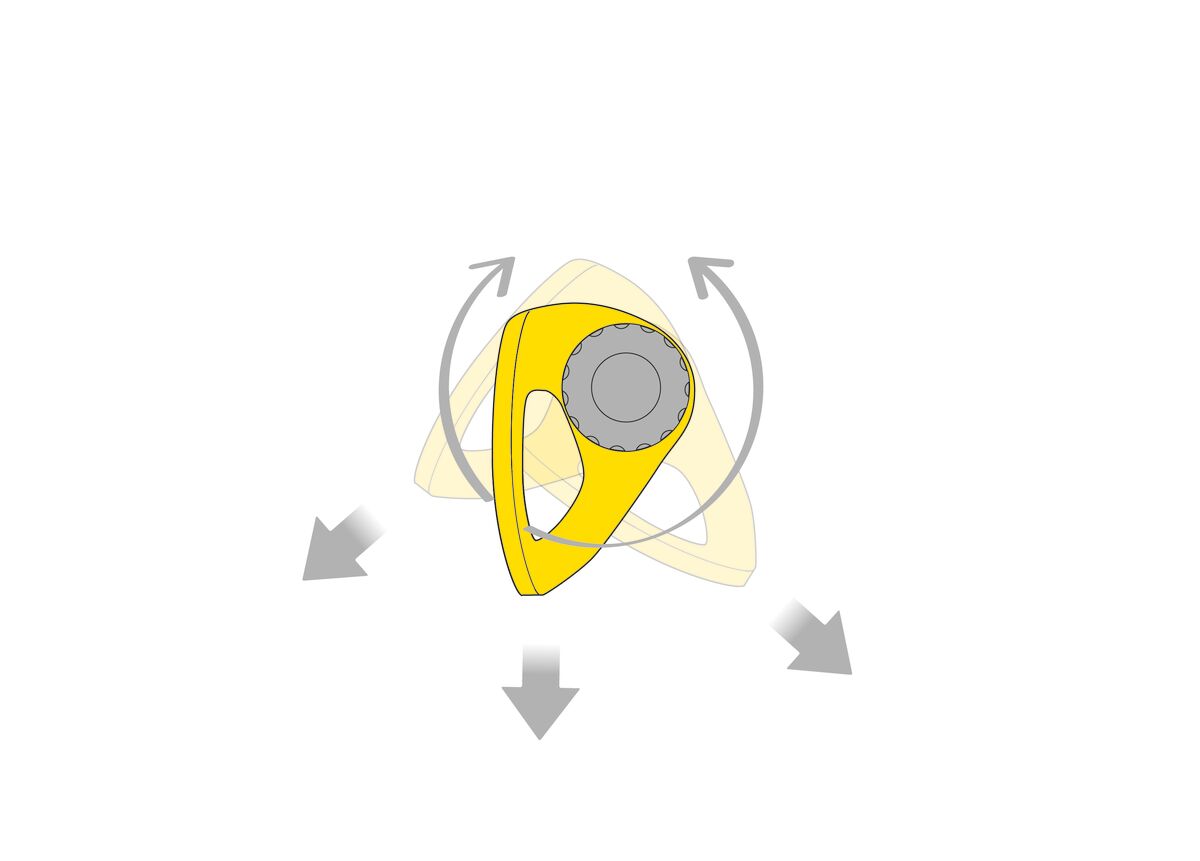

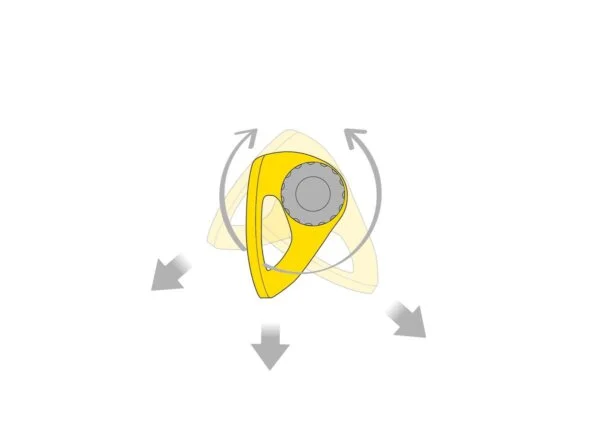

    Hanger rotation:
    – COEUR hanger can rotate once installed and when laterally loaded during use, so it aligns with the pull of the connector

Specifications

  • Material(s): Stainless steel, plastic
  • Certification(s): CE EN 795 B, CE EN 959, TS 16415, UKCA

References

ReferencesG037BA00
Diameter12 mm
Weight140 g
Drilling depth6,5 cm
Drilling diameter12 mm
Shear strength in 50 MPa concrete> 25 kN
Pull-out strength in concrete 50 MPa> 20 kN
Shear strength in 25 MPa concrete25 kN
Pull-out strength in concrete 25 MPa20 kN
Guarantee3 years
Inner Pack Count1
