COEUR BOLT STAINLESS

High quality stainless steel anchor for typical exterior use (pack of 20)

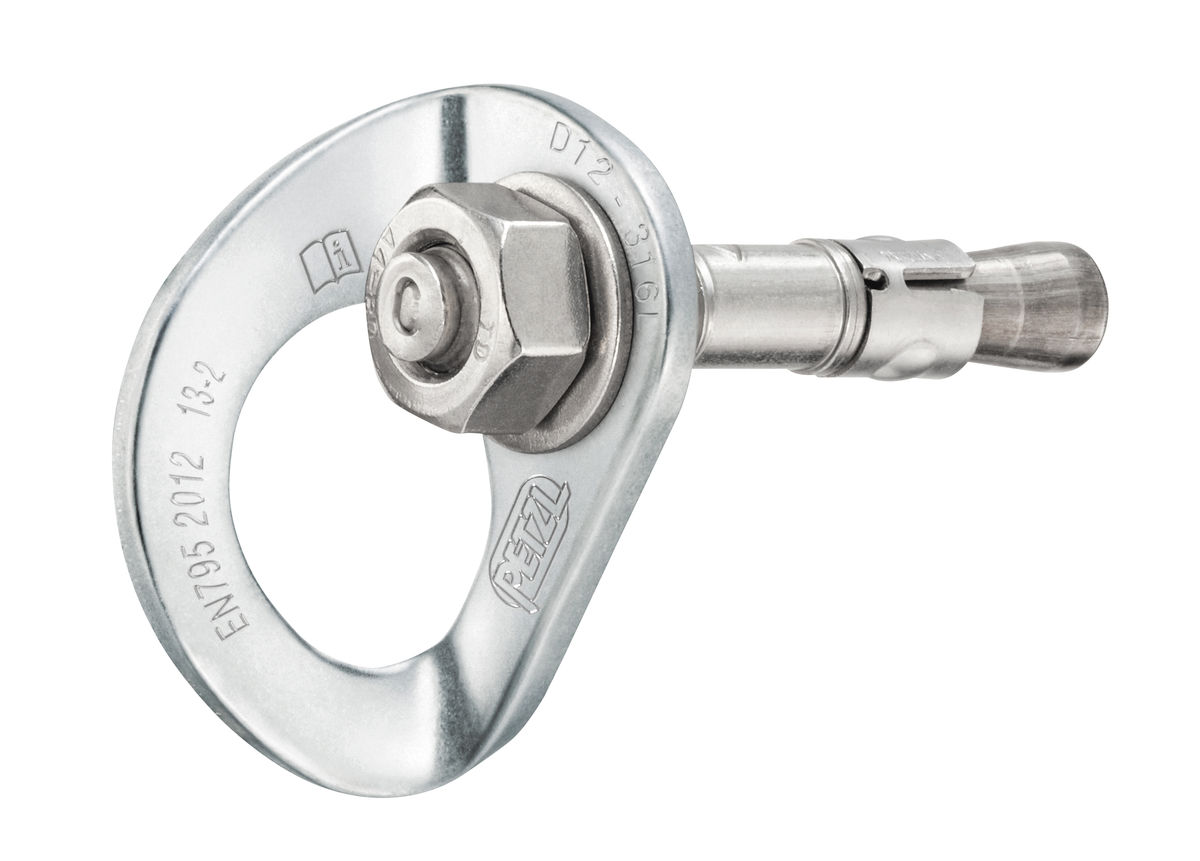

The COEUR BOLT STAINLESS is a high-quality stainless steel anchor made up of a COEUR STAINLESS hanger, a bolt, and a nut. It is designed for use in typical outdoor environments. It is available in 10 and 12 mm diameters.

Add to Quote

Description

  • 316L stainless steel assembly that offers excellent resistance to corrosion in typical exterior environments, made up of a COEUR STAINLESS hanger, a bolt, and a nut

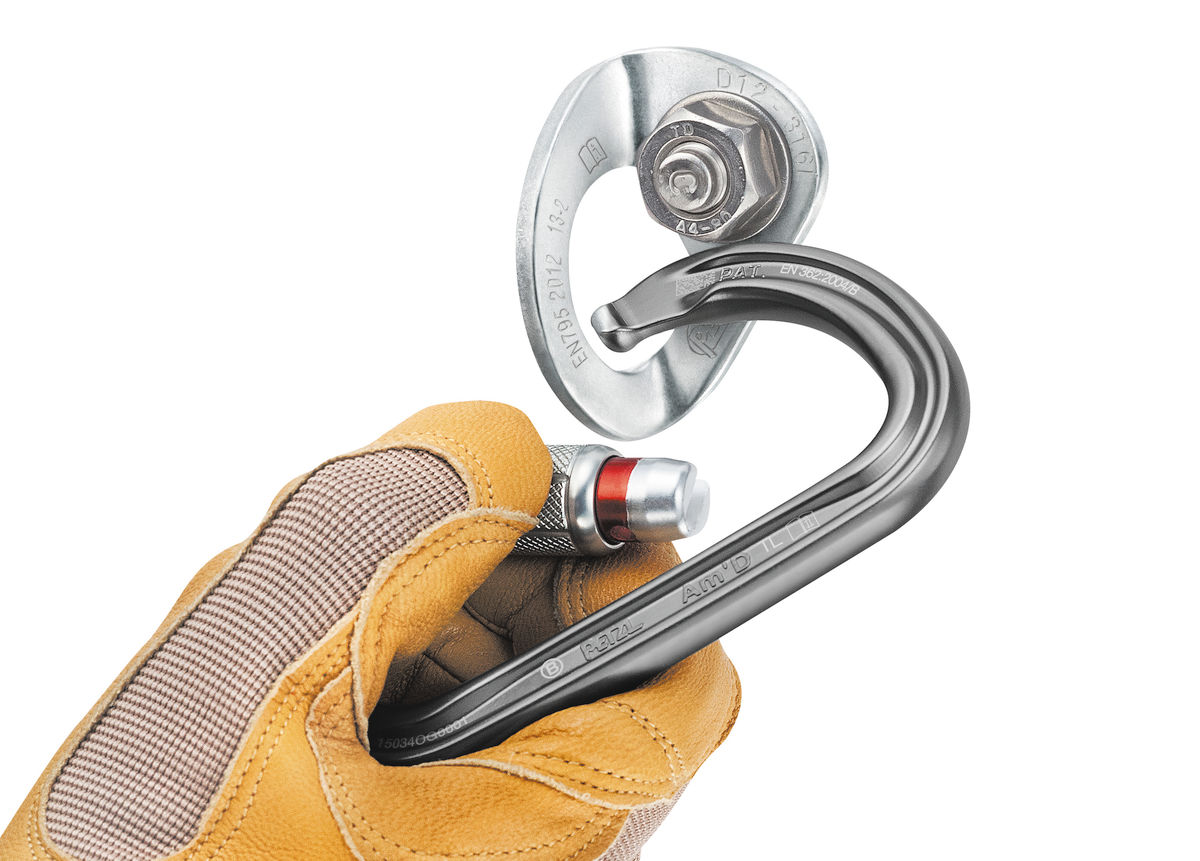

  • Easy to clip:
    – the wide, ergonomic connection point facilitates carabiner clipping
    – the width of the attachment point allows installation of two carabiners at the same time

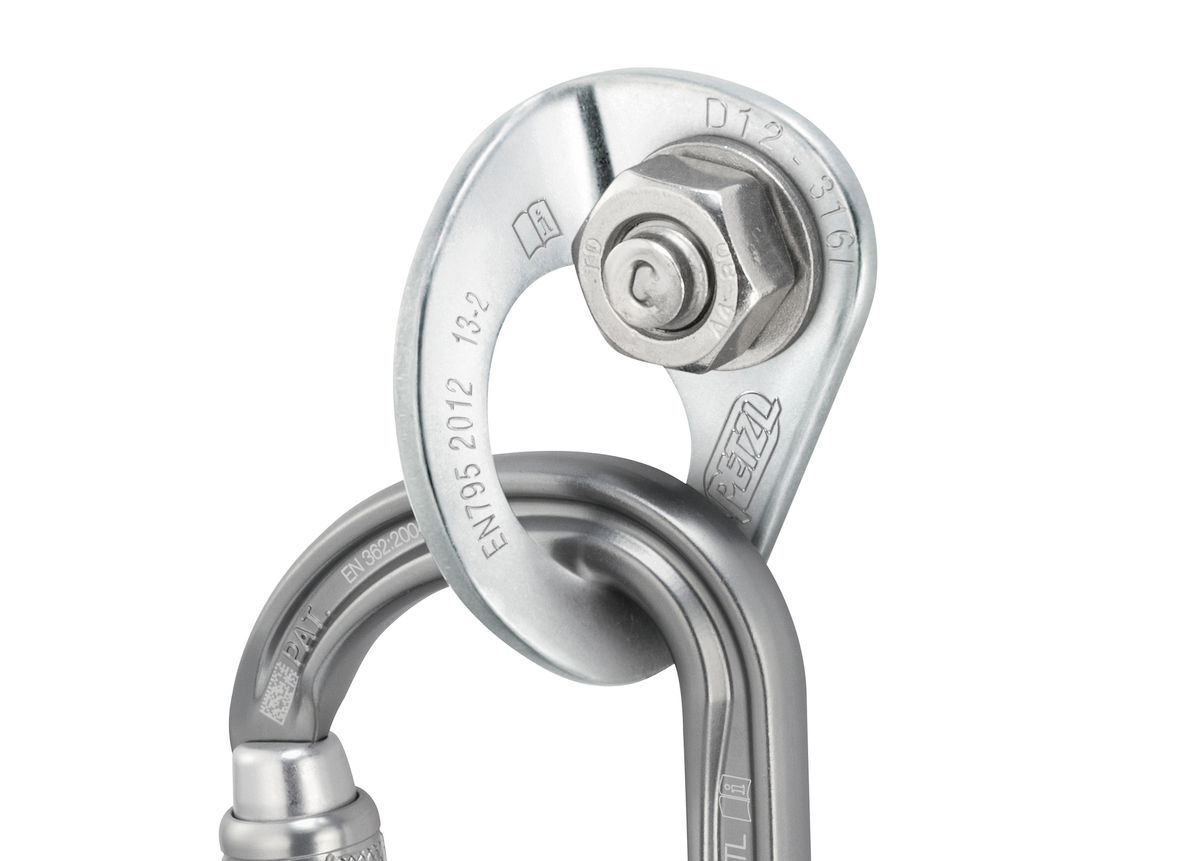

  • Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors

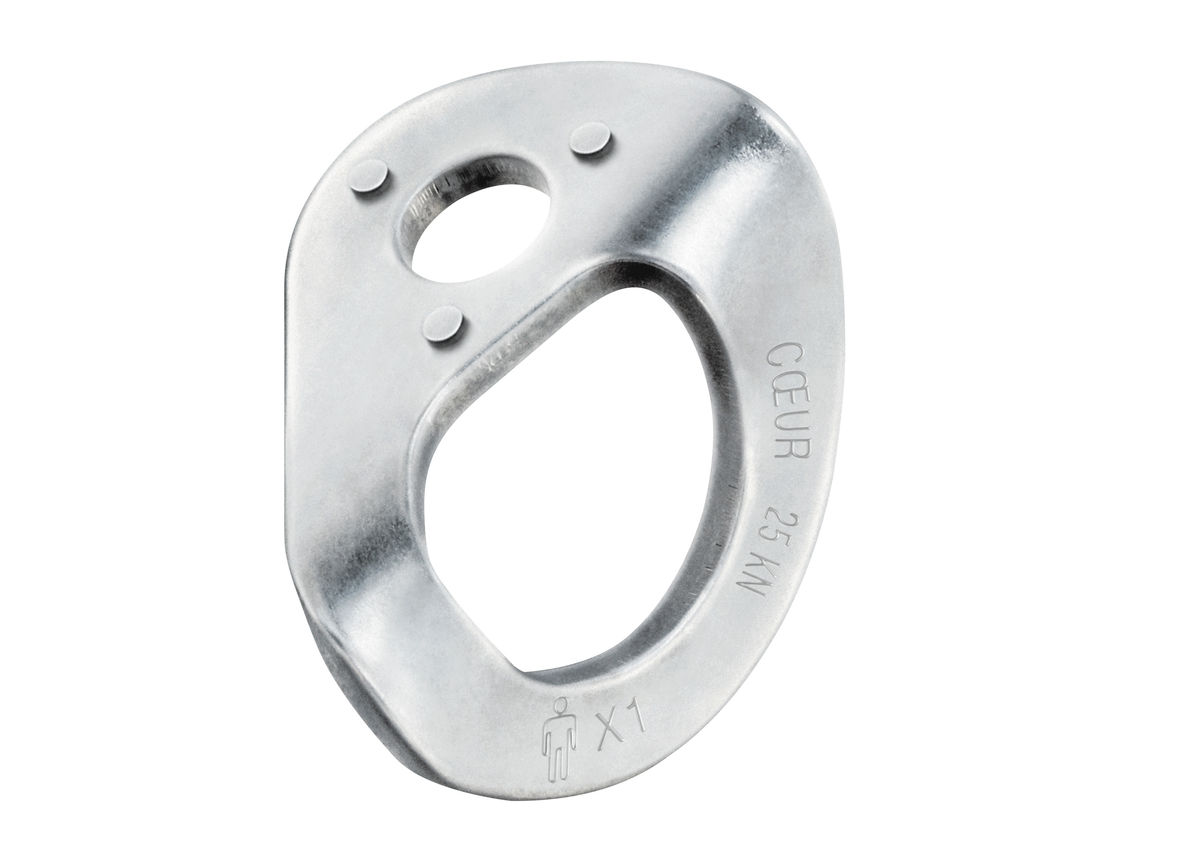

  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use

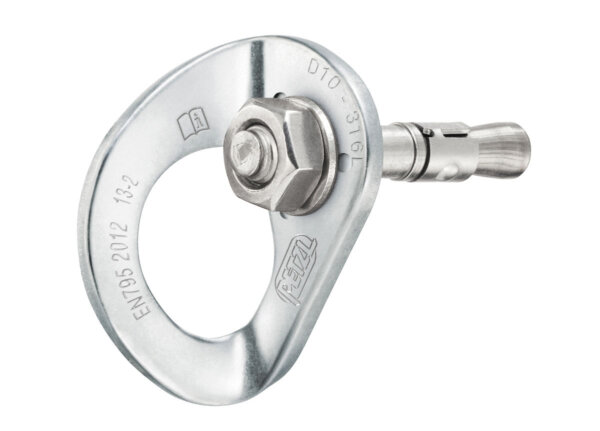

  • Available in two bolt sizes (10 or 12 mm)
  • COEUR STAINLESS hangers, available separately:
    – for 10 mm diameter bolt (P36AS 10)
    – for 12 mm diameter bolt (P36AS 12)

Specifications

  • Material(s): 316L stainless steel
  • Certification(s): EN 959

References

ReferencesP36BS 10P36BS 12
Diameter10 mm12 mm
Weight110 g135 g
Drilling diameter10 mm12 mm
Total bolt length70 mm85 mm
Shear strength in 50 MPa concrete25 kN25 kN
Pull-out strength in concrete 50 MPa15 kN18 kN
Guarantee3 years3 years
Inner Pack Count11
