COEUR BOLT HCR

Additional information

COEUR BOLT HCR

High Corrosion Resistance stainless steel anchor for corrosive environments (pack of 20)

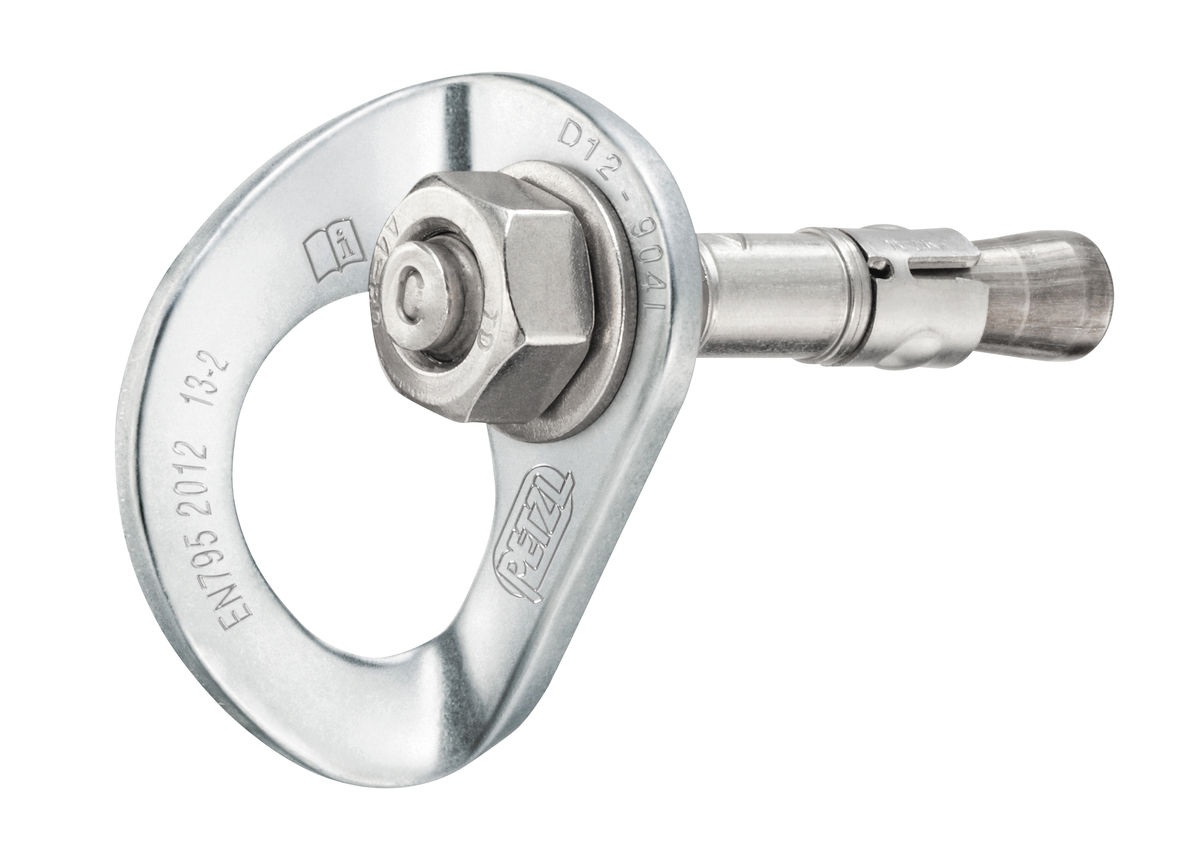

The COEUR BOLT HCR is a High Corrosion Resistance stainless steel anchor made up of a COEUR HCR hanger, a bolt, and a nut. It is designed for use in corrosive environments.

Add to Quote

Description

  • HCR 904 (High Corrosion Resistance) stainless steel assembly designed for corrosive environments, made up of a COEUR HCR hanger, a bolt, and a nut
  • Easy to clip:

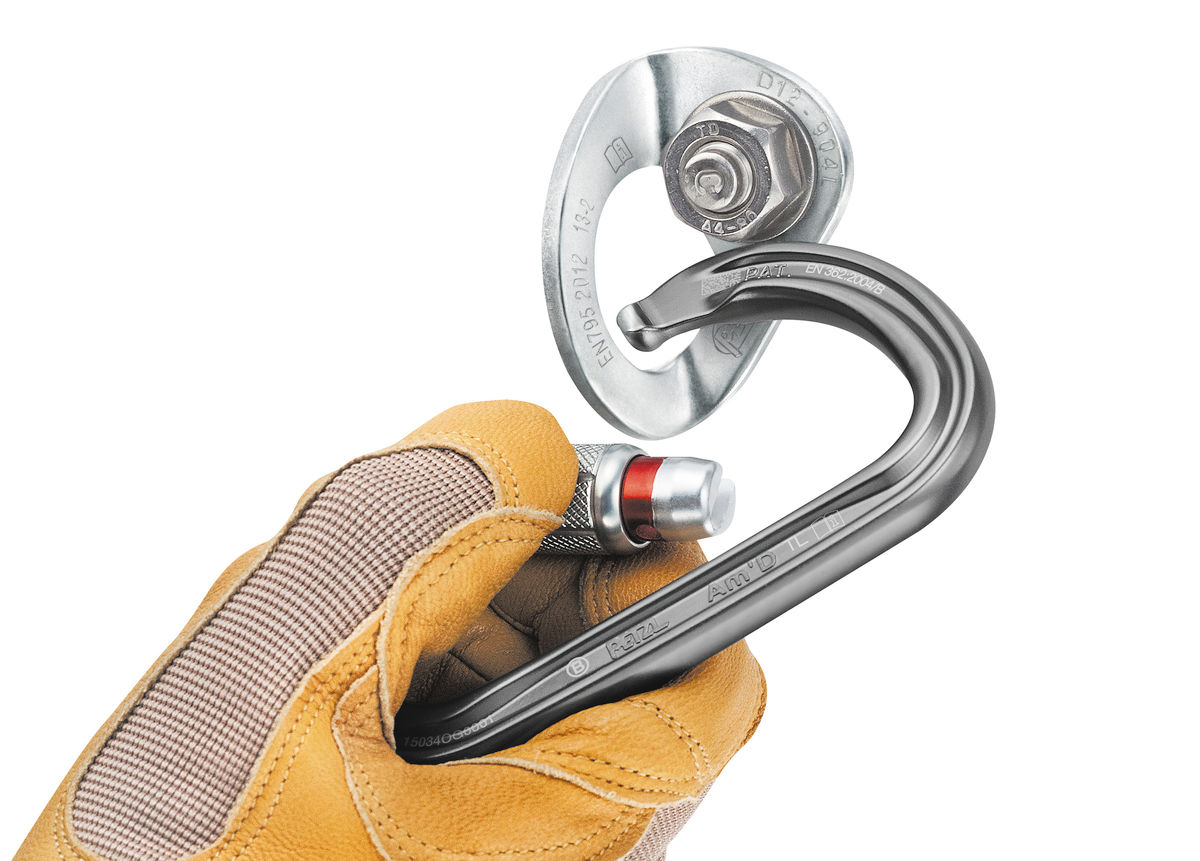

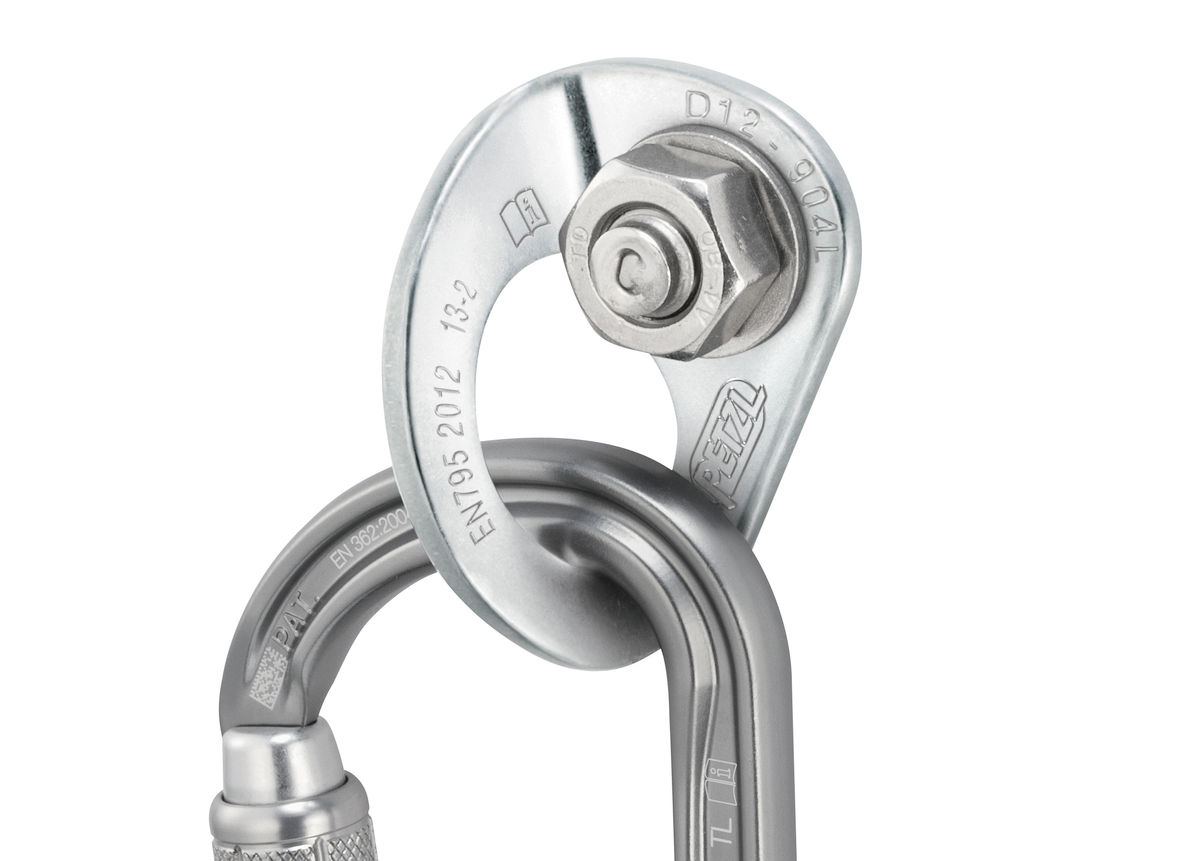

    – the wide, ergonomic connection point facilitates carabiner clipping
    – the width of the attachment point allows installation of two carabiners at the same time
  • Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
  • Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use

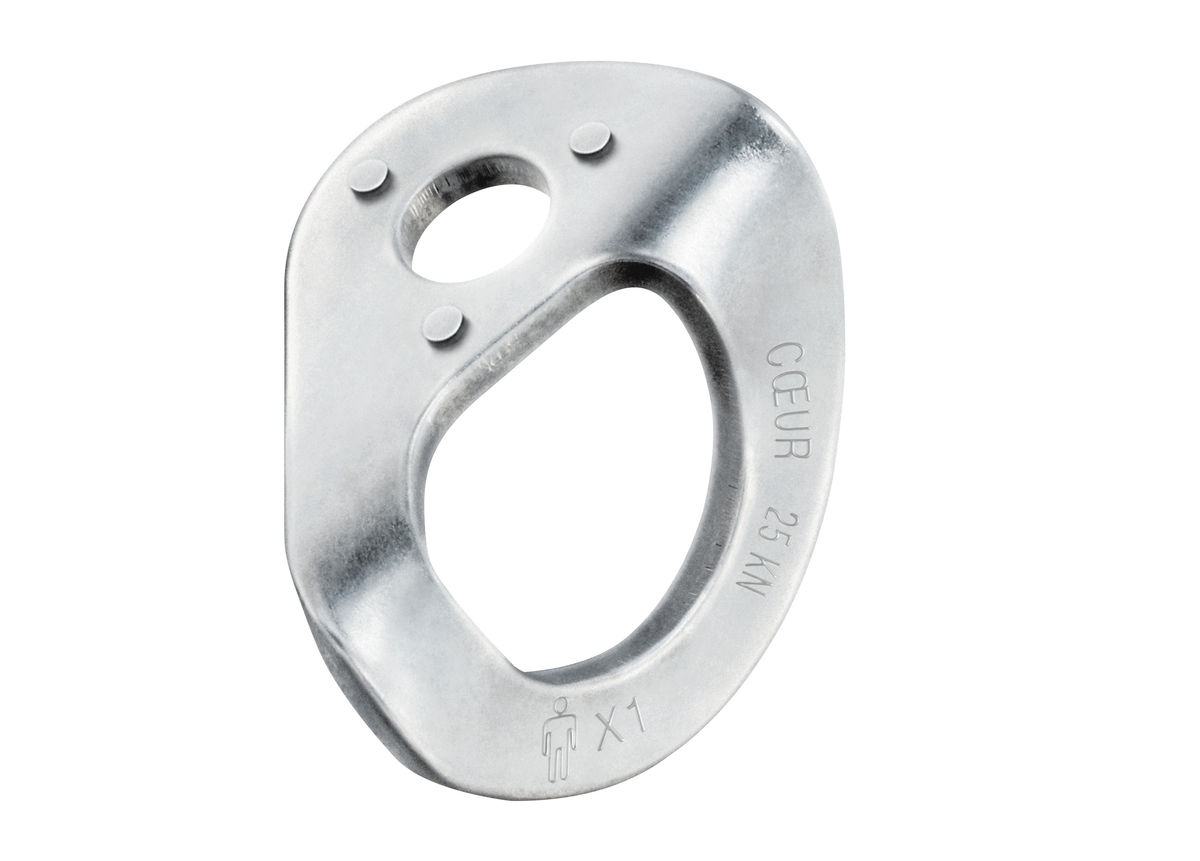

  • COEUR HCR hanger for 12 mm diameter bolt (P36AH 12), available separately

Specifications

  • Material(s): 904 HCR (High Corrosion Resistance) stainless steel
  • Certification(s): EN 959

References

ReferencesP36BH 12
Diameter12 mm
Total bolt length85 mm
Weight145 g
Drilling diameter12 mm
Shear strength in 50 MPa concrete25 kN
Pull-out strength in concrete 50 MPa18 kN
Guarantee3 years
Inner Pack Count1
