MINI

Additional information

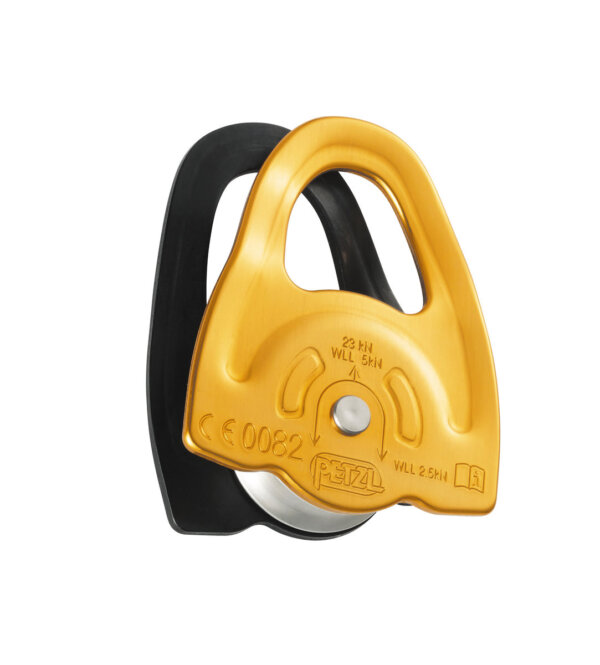

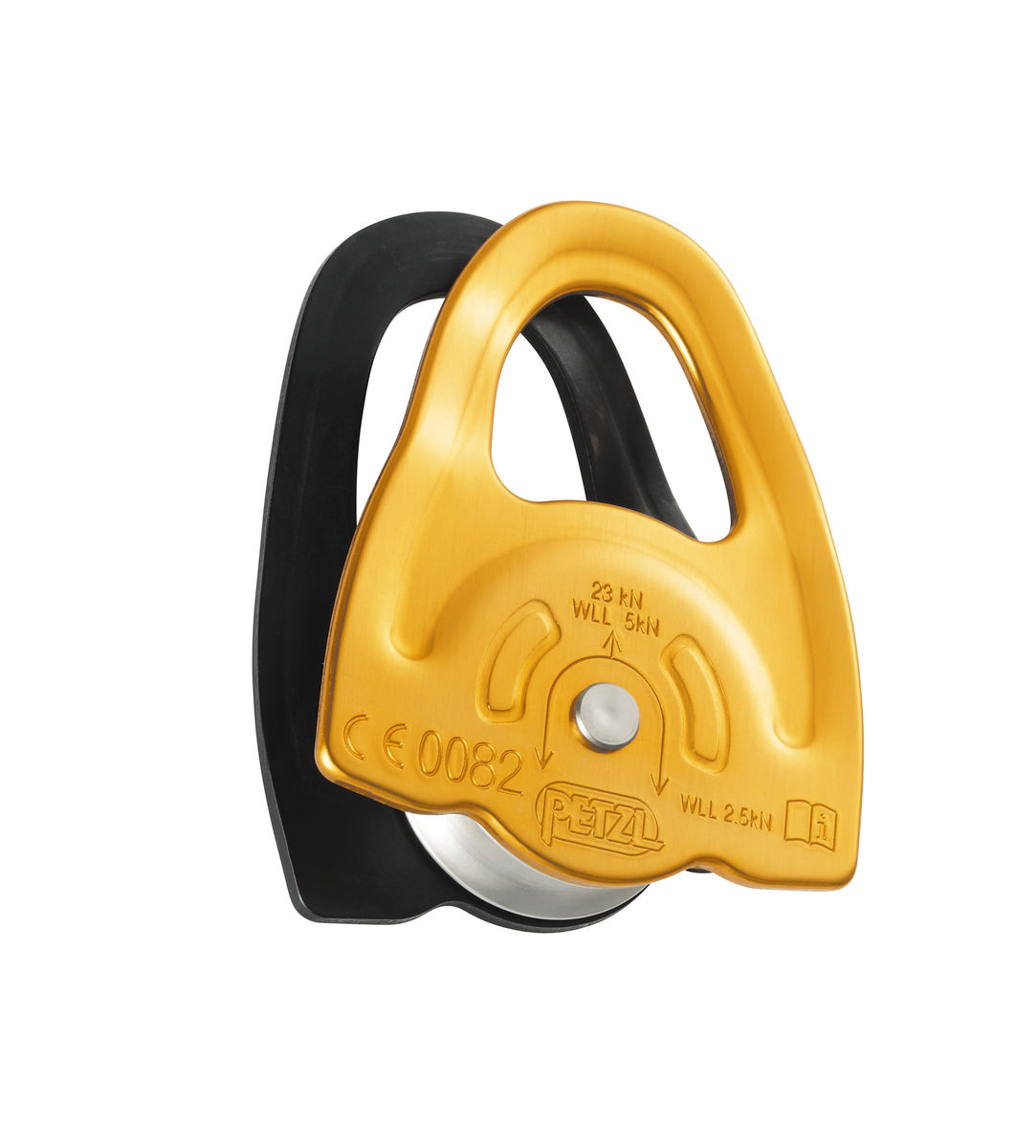

MINI

Highly efficient and lightweight Prusik pulley

The lightweight MINI can handle big loads, but is small enough to go almost anywhere or be carried on the harness.

Add to Quote

Description

  • Special side plates designed for use with a Prusik friction hitch in progress capture systems
  • Sheave mounted on sealed ball bearings for excellent efficiency
  • Compact and lightweight

Specifications

  • Rope compatibility: 7 to 11 mm
  • Sheave diameter: 25 mm
  • Ball bearings: yes
  • Efficiency: 91 %
  • Maximum working load: 2,5 kN x 2 = 5 kN
  • Weight: 80 g
  • Certification(s): CE EN 12278, NFPA 2500 Technical Use, UKCA

References

ReferencesP59A
Guarantee3 years
Inner Pack Count1
