ASAP’AXIS 11 mm

Additional information

ASAP’AXIS 11 mm

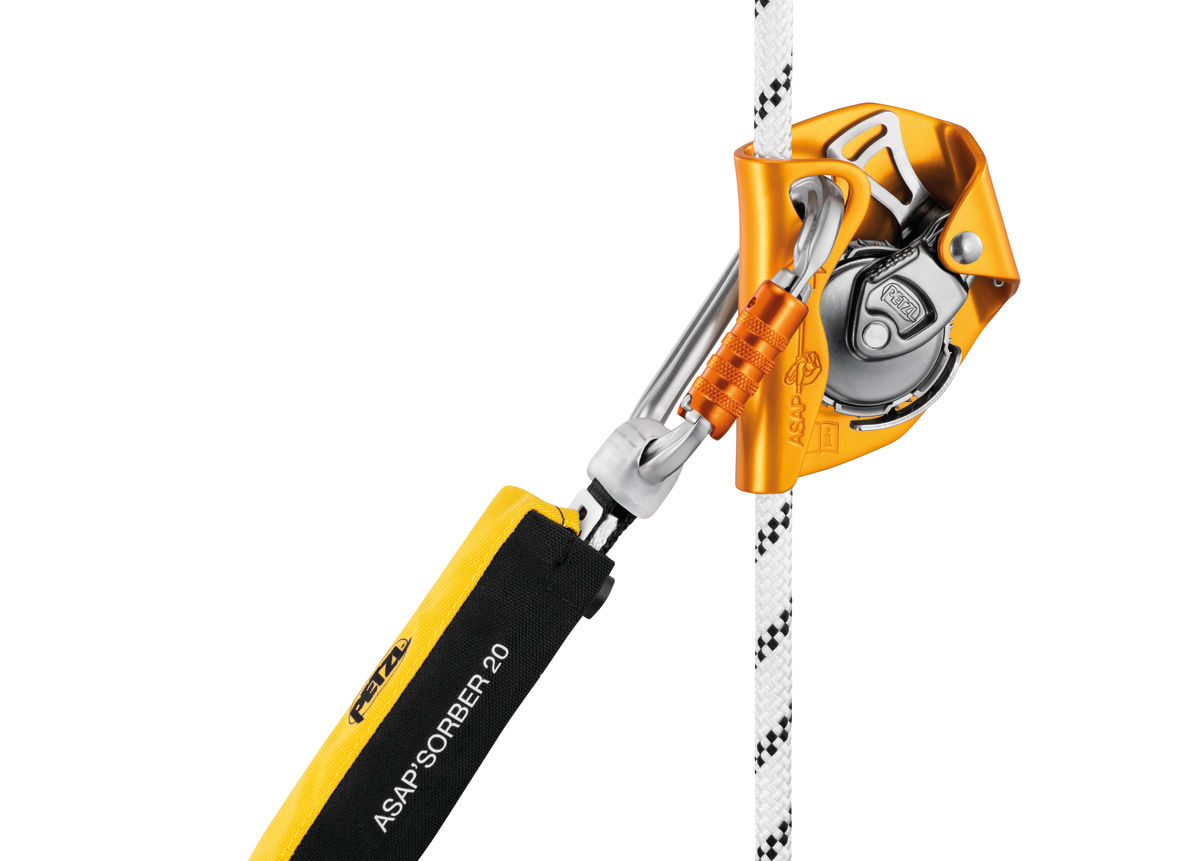

Low stretch kernmantel rope with sewn termination and integrated energy dissipater, for use with an ASAP mobile fall arrester

The ASAP’AXIS 11 mm low stretch kernmantel rope with sewn termination and integrated energy dissipater is designed for use with an ASAP mobile fall arrester. The energy dissipater is integrated with the rope and meets the requirements of the European EN 353-2 standard for fall protection. The standard diameter ensures a good grip for easier handling. EverFlex technology guarantees great flexibility and consistent performance over time. The sewn termination features the STUART accessory that helps keep the connector in position to facilitate handling. Rope available in six lengths.

Add to Quote

Description

  • Rope has sewn terminations and an integrated energy dissipater, thus meeting the requirements of the EN 353-2 standard when used with an ASAP mobile fall arrester
  • In the event of a fall, the special stitching tears and dissipates energy, thus limiting the impact force on the user
  • Standard diameter ensures a good grip for easier handling
  • Consistent performance over time:
    – construction with nylon core and specially-braided polyester sheath
    – EverFlex technology ensures great flexibility over time and under any conditions (water, dust, mud…), allowing it to maintain excellent handling and optimal performance with devices

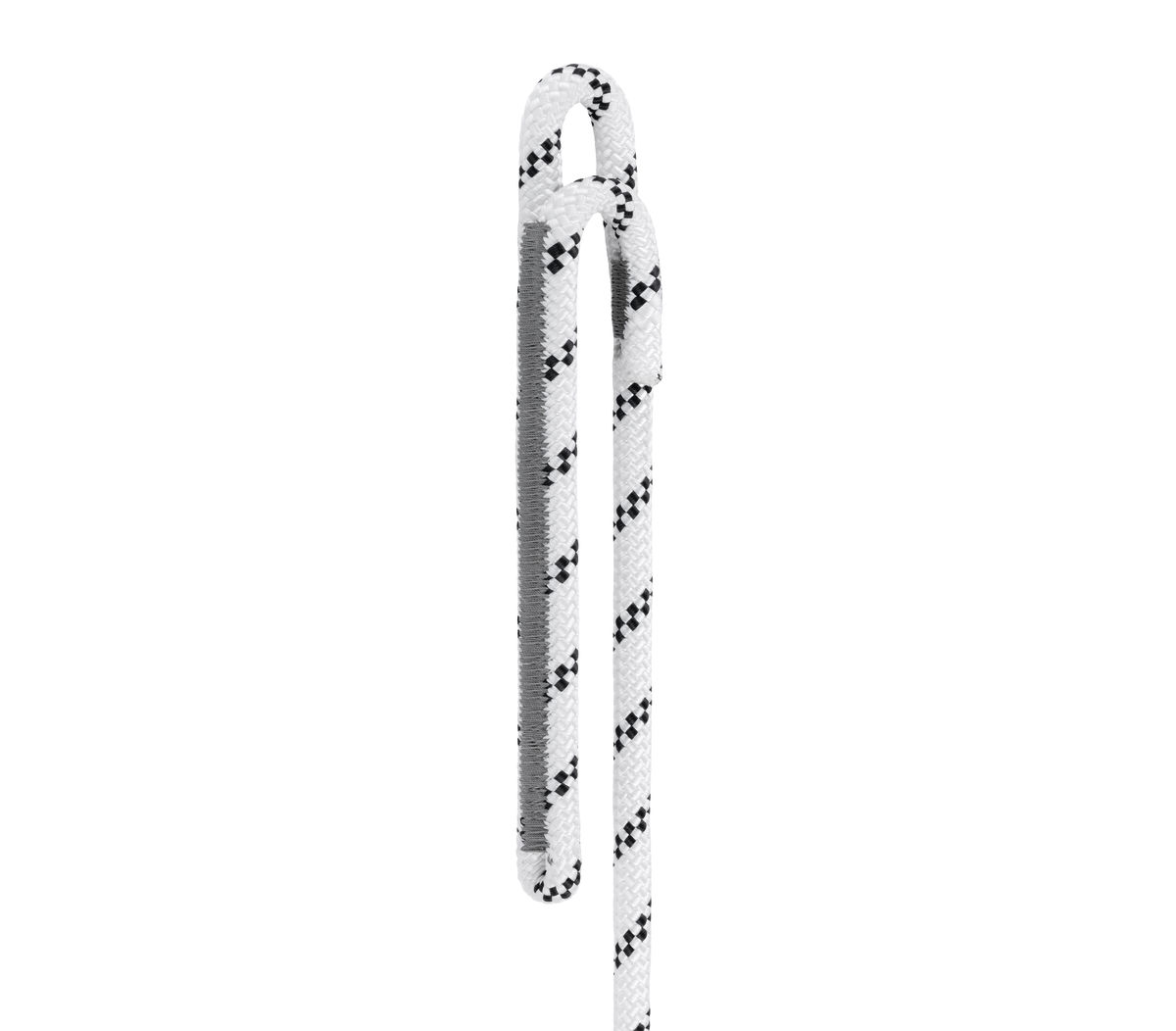

  • Rope with a sewn termination that features the STUART accessory, to help keep the connector in position and facilitate handling

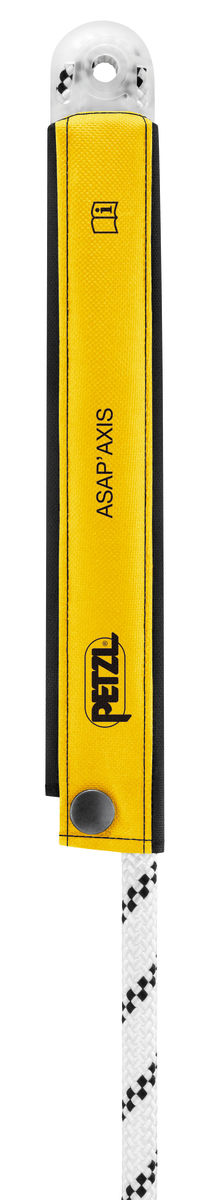

  • Durable mesh sleeve protects the energy absorber from abrasion and allows regular inspection of the absorber
  • Standard lengths: 10, 20, 30, 40, 50 and 60 m

Specifications

  • Diameter: 11 mm
  • Material(s): polyester, nylon
  • Certification(s): CE EN 1891 type A, UKCA
  • Weight per meter: 82 g
  • Strength with sewn termination: 22 kN
  • Impact force (factor 0,3): 5,2 kN
  • Construction: 32 carrier
  • Percentage of sheath: 41 %

References

ReferencesR074DA00R074DA01R074DA02R074DA03R074DA04R074DA05
Length10 m20 m30 m40 m50 m60 m
Color(s)whitewhitewhitewhitewhitewhite
Guarantee3 years3 years3 years3 years3 years3 years
Inner Pack Count111111
