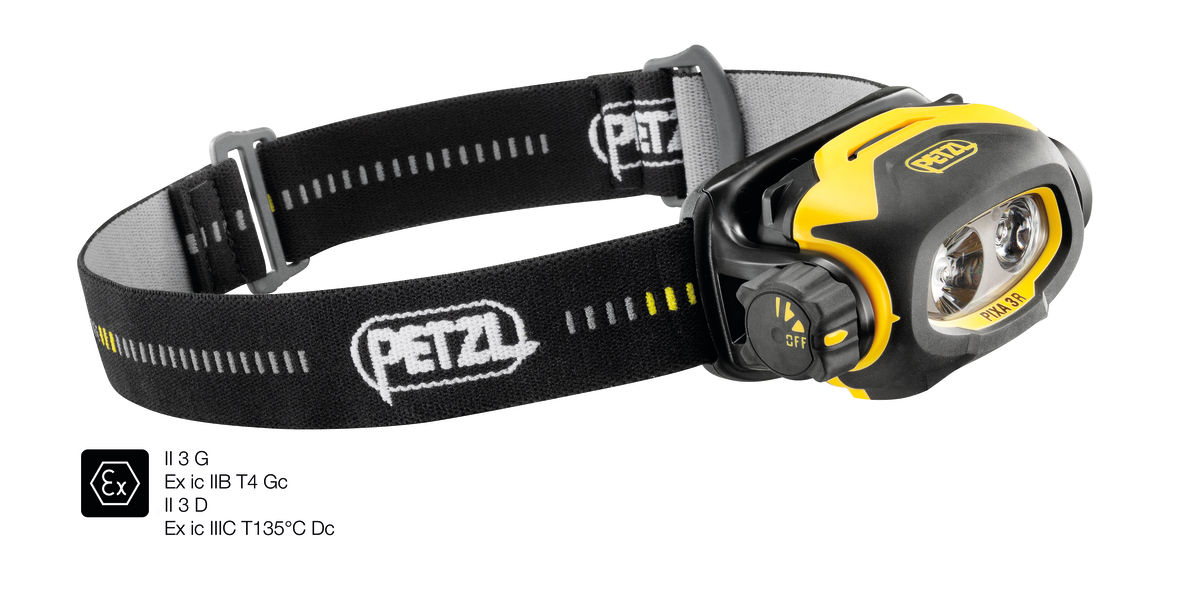

PIXA® 3R

Rechargeable headlamp for use in ATEX explosive environments, suitable for proximity lighting, movement and long-range vision. 90 lumens

The PIXA 3R headlamp is a rugged, rechargeable headlamp suitable for frequent use by professionals. The multi-beam adapts to all situations: close-range work, movement, and long-range vision. CONSTANT LIGHTING technology: brightness does not gradually decrease as the batteries are drained. It meets ATEX zone 2/22 (II 3 GD Ex ic IIB T4 Gc IIIC T135° C Dc) certification requirements for work in explosive environments.

Add to Quote

Description

  • Headlamp keeps hands free for work and can be:
    – worn on the head with the headband
    – attached to the helmet with a mounting plate (included)
    – placed on the ground
  • For frequent use, with integrated rechargeable Lithium-Ion polymer battery and quick charging dock (3 hours)
  • CONSTANT LIGHTING technology ensures brightness that does not gradually decrease as the battery drains

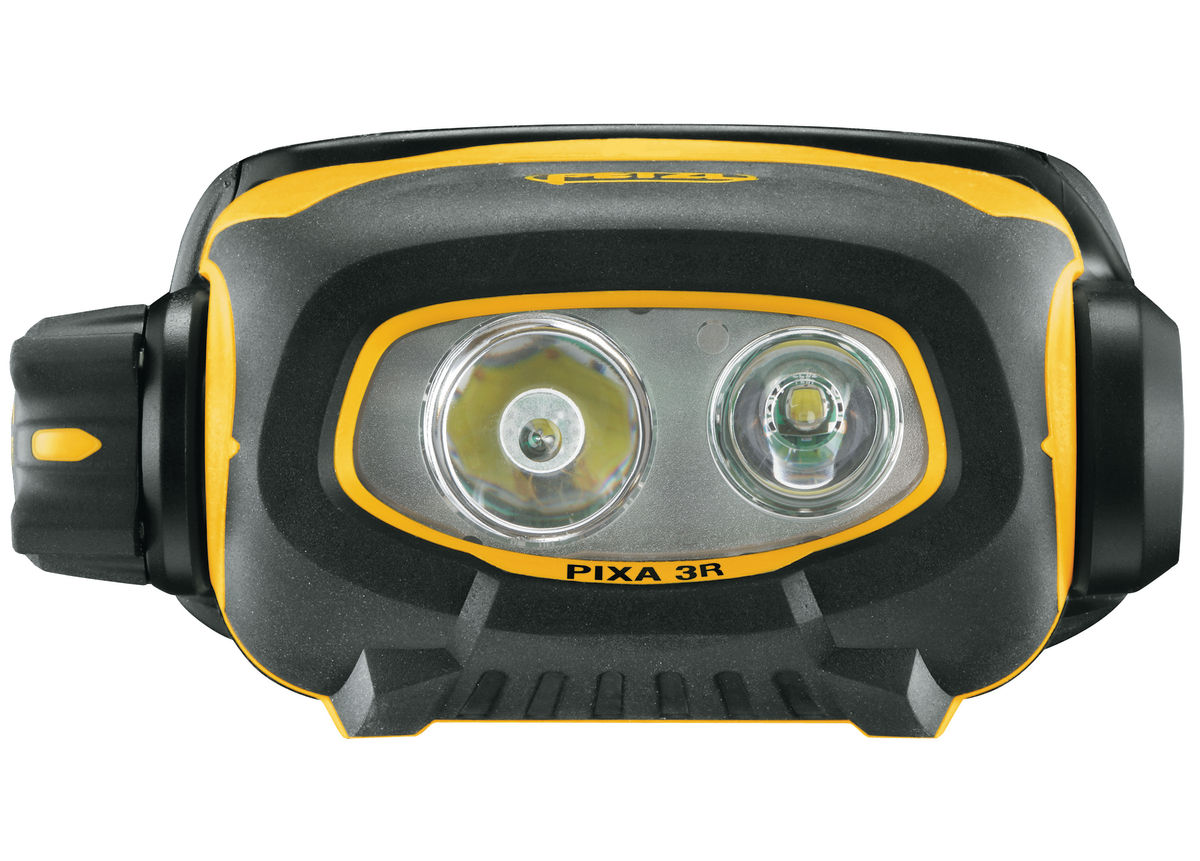

  • Several lighting modes adapt to each situation:
    – a mode adapted for close-range work: uniform flood beam
    – a mode adapted for movement: mixed beam with focused component allows user to move around comfortably
    – a mode adapted for long-range vision: focused beam
  • Burn time parameters may be used to adapt lighting performance to need (by rapidly turning the knob):
    – STANDARD: balance between power and burn time
    – MAX AUTONOMY: burn time prioritized
    – MAX POWER: brightness prioritized
  • Lighting for professionals that is reliable, practical and durable:
    – automatically switches to reserve mode when battery is almost drained (signaled by blinking light and red indicator)
    – rotating knob that is ergonomic, even with gloves
    – storage position helps protect the headlamp lens and prevents inadvertently turning it on

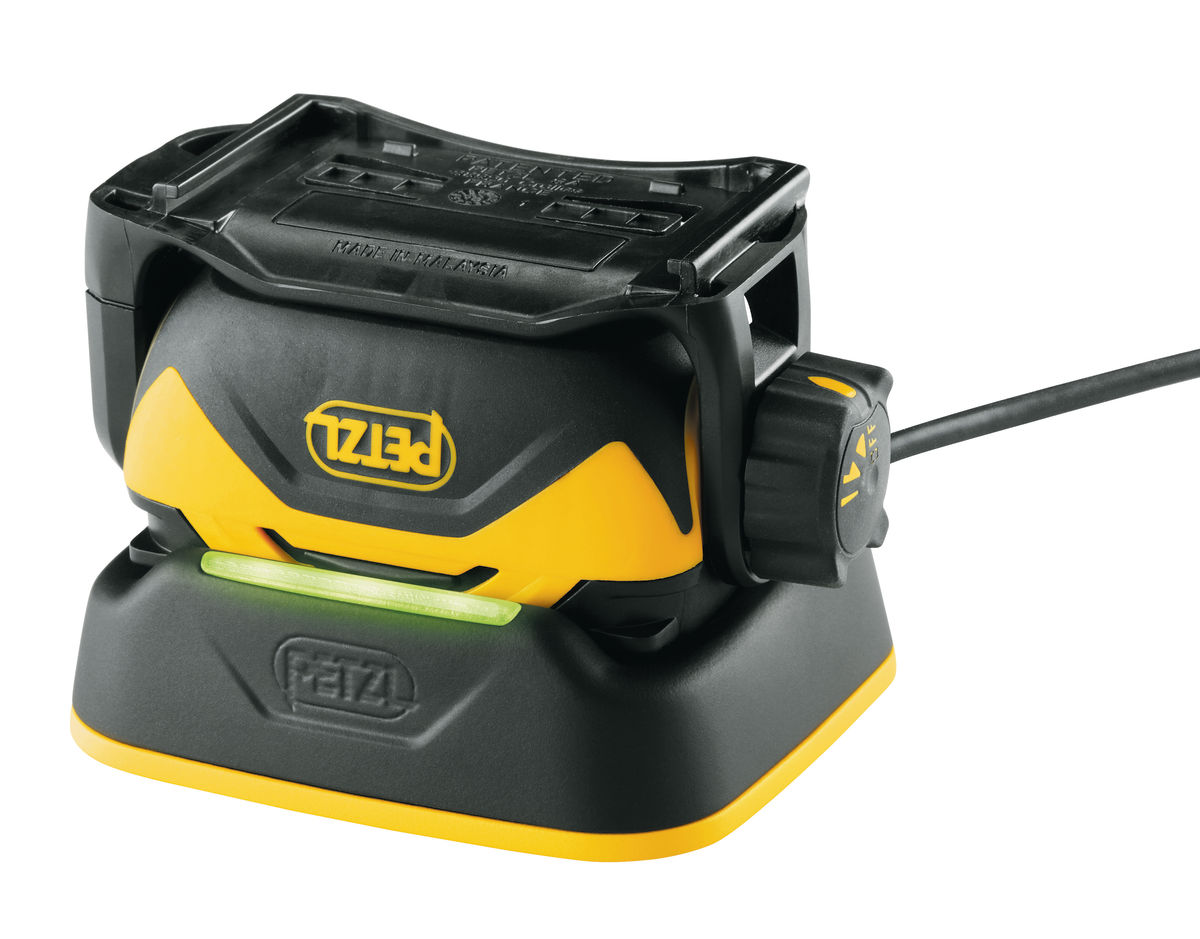

    – charging dock for direct charging of the headlamp itself or only the battery
    – may be used in explosive environments
    – excellent resistance to falls (2 m), impacts, and crushing (80 kg)
    – comfortable and washable elastic headband
    – resistant to chemicals
  • ATEX zone 2/22 (II 3 GD Ex ic IIB T4 Gc IIIC T135° C Dc) certified headlamp

Specifications

  • Weight: 145 g
  • Technology: CONSTANT LIGHTING
  • Beam pattern: flood, mixed or focused
  • Energy: rechargeable Lithium-Ion Polymer battery, 930 mAh / 3,7 V / 3,44 Wh
  • Recharge time: 3 h
  • Watertightness: IP67 (waterproof to -1 meter for 30 minutes; no maintenance required after immersion)

References

ReferencesE78CHR 2
Certification(s) : CE, UKCA, II 3 G Ex ic IIB T4 Gc, II 3 D Ex ic IIIC T135° C Dc, room temperature: -30° C to +40° C
Color(s)black/yellow
Guarantee3 years
Inner Pack Count1

Lighting performance

Lighting performance

Lighting technologySettingsLighting modesBeam patternBrightnessDistanceBurn timeReserve mode
CONSTANT LIGHTINGSTANDARDclose-range workflood20 lm15 m11h3010 lm for 1h30
movementmixed55 lm45 m5 h
distance visionfocused90 lm90 m3h30
MAX POWERclose-range workflood25 m3 h
movementmixed55 m
distance visionfocused90 m3h30
MAX AUTONOMYclose-range workflood20 lm15 m11h30
movementmixed30 m
distance visionfocused50 m
