PIXA® 3 (HAZLOC)

Additional information

PIXA® 3 (HAZLOC)

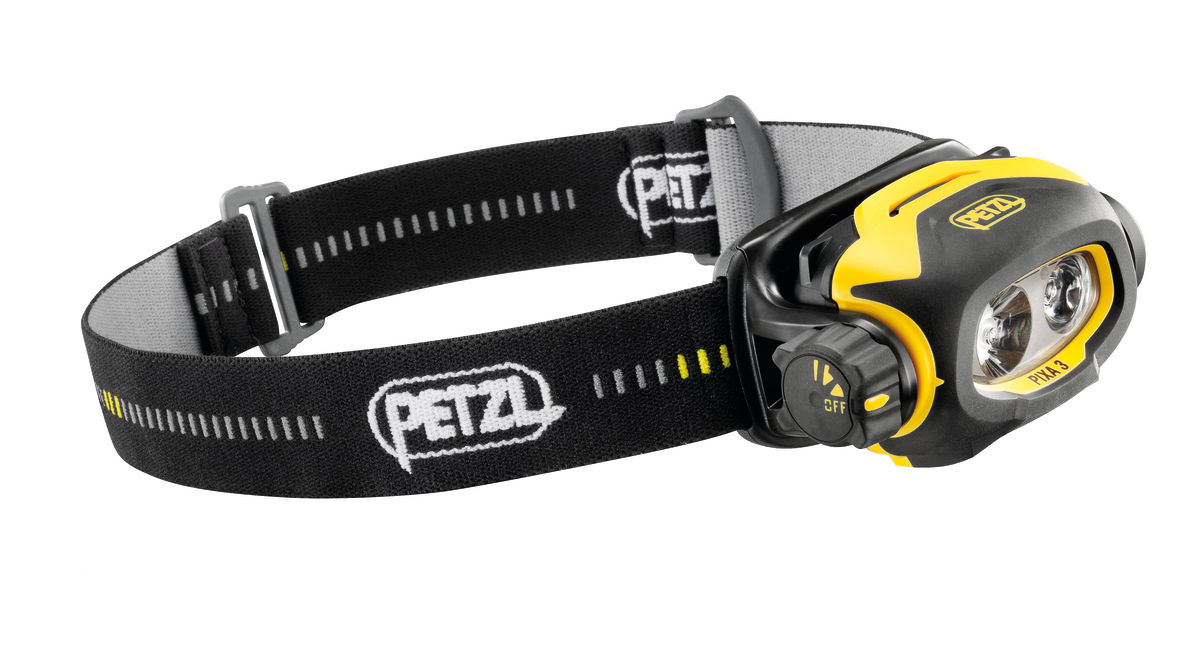

Headlamp for use in HAZLOC hazardous areas; suitable for proximity lighting, movement and long-range vision. 100 lumens

The PIXA 3 headlamp is durable and versatile. The multi-beam adapts to all situations: close-range work, movement, and long-range vision. CONSTANT LIGHTING technology: brightness does not decrease gradually as the batteries are drained. It meets HAZLOC certification requirements (Class I Div 2 Groups C, D and Class II Div 2 Group G, T4) for work in explosive environments.

Add to Quote

Description

  • Headlamp keeps hands free for work and can be:
    – worn on the head with the headband
    – attached to the helmet with a mounting plate (included)
    – placed on the ground
  • CONSTANT LIGHTING technology ensures brightness that does not gradually decrease as the battery drains
  • Several lighting modes adapt to each situation:
    – a mode adapted for close-range work: uniform flood beam
    – a mode adapted for movement: mixed beam with focused component allows user to move around comfortably
    – a mode adapted for long-range vision: focused beam
  • Lighting for professionals that is reliable, practical and durable:
    – automatically switches to reserve lighting when batteries are almost drained (signaled by blinking light and red indicator)

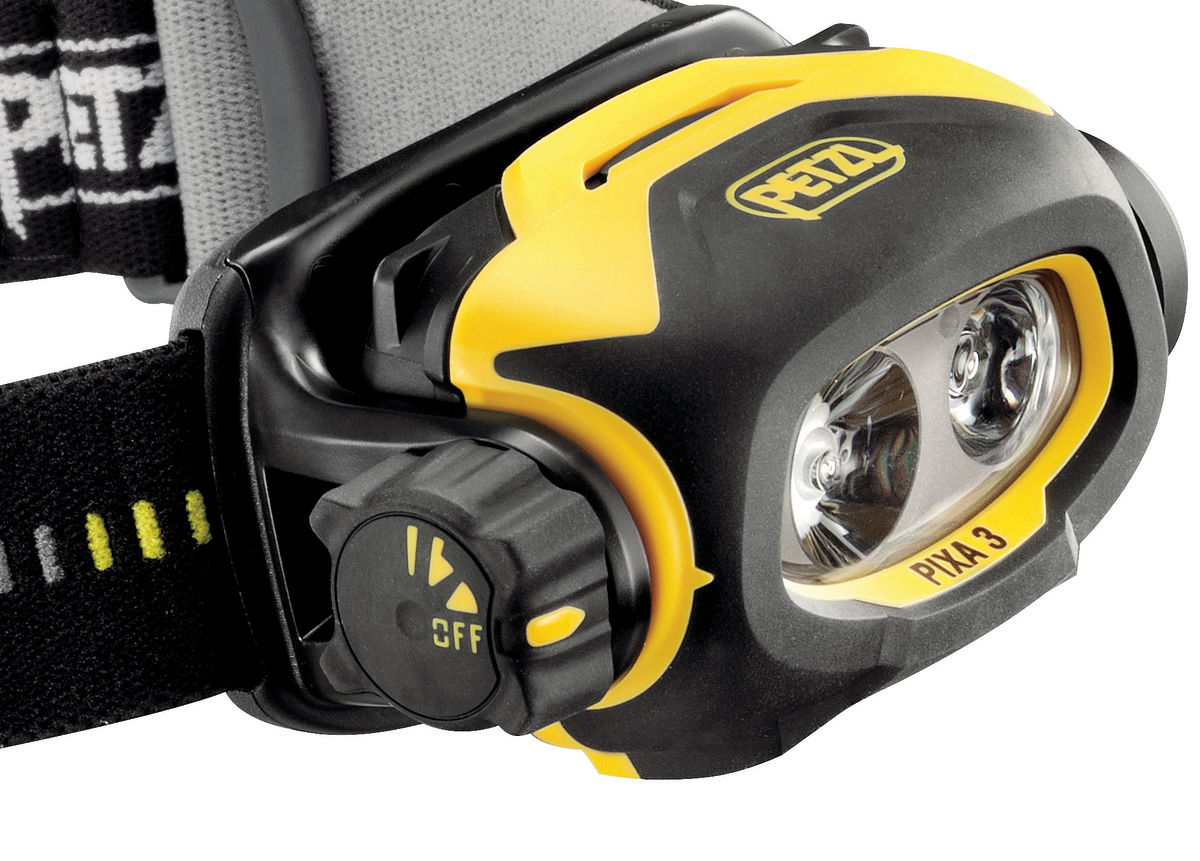

    – ergonomic rotary switch is usable with gloves
    – storage position helps protect the headlamp lens and prevents inadvertently turning it on
    – may be used in explosive environments
    – excellent resistance to falls (2 m), impacts, and crushing (80 kg)
    – comfortable and washable elastic headband
    – resistant to chemicals
  • HAZLOC certified headlamp (Class I Div 2 Groups C, D and Class II Div 2 Group G, T4).

Specifications

  • Weight: 160 g
  • Technology: CONSTANT LIGHTING
  • Beam pattern: flood, mixed or focused
  • Energy: 2 AA/LR06 batteries (included)
  • Battery compatibility: rechargeable Ni-MH and lithium
  • Watertightness: IP67 (waterproof to -1 meter for 30 minutes; no maintenance required after immersion)

References

ReferencesE78CHB 2UL
Certification(s)CE, HAZLOC (Class I Div 2 Groups C, D et Class II Div 2 Group G, T4), température ambiante : -30° C à +40° C
Color(s)black/yellow
Guarantee3 years
Inner Pack Count1

Lighting performance

Lighting performance

Lighting technologyLighting modesBeam typeBrightnessDistanceBurn timeReserve lighting
CONSTANT LIGHTINGclose-range workflood20 lm15 m26 h10 lm for 13 h
movementmixed60 lm45 m6.5 h
distance visionfocused100 lm90 m3.5 h
